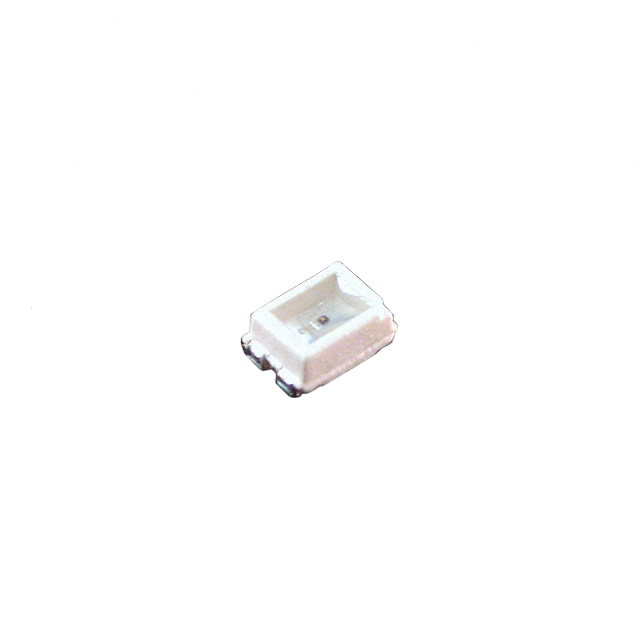

AA3020APBC/A

Active

Kingbright

LED BLUE CLEAR SMD

Search across all available documentation for this part.

Active

Kingbright

LED BLUE CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Wavelength - Dominant	Current - Test	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Lens Size [y]	Lens Size [x]	Lens Transparency	Configuration	Package / Case	Mounting Type	Color	Lens Color	Millicandela Rating	Viewing Angle [custom]	Lens Style	Height (Max) [Max] [z]
Kingbright AA3020AQBC/D	SMD	470 nm	20 mA	468 nm	3.3 V	2 mm	2.7 mm	1.4 mm	2 mm	Clear	Standard	2-SMD J-Lead	Surface Mount	Blue	Colorless	160 mcd	90 °	Rectangle with Flat Top	1.65 mm
Kingbright AA3020AYC	SMD	588 nm	20 mA	590 nm	2.1 V	2 mm	2.7 mm	1.4 mm	2 mm	Clear	Standard	2-SMD J-Lead	Surface Mount	Yellow	Colorless	15 mcd	90 °	Rectangle with Flat Top	1.65 mm
Kingbright AA3020APBC/A	SMD	470 nm	20 mA	468 nm	3.2 V	2 mm	2.7 mm	1.4 mm	2 mm	Clear	Standard	2-SMD J-Lead	Surface Mount	Blue	Colorless	60 mcd	90 °	Rectangle with Flat Top	1.65 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Blue 470nm LED Indication - Discrete 3.2V 2-SMD, J-Lead

Technical documentation and resources
