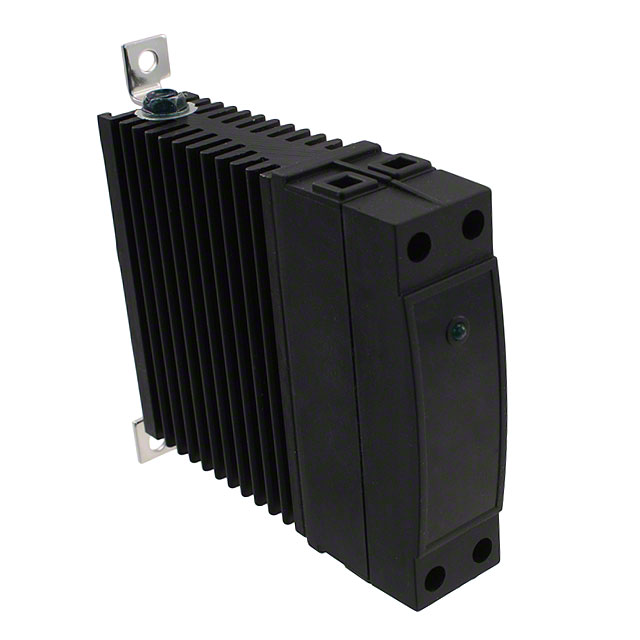

CKRA4810EP

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 10A 48-530V

Search across all available documentation for this part.

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 10A 48-530V

Technical Specifications

Parameters and characteristics for this part

Specification	CKRA4810EP

Approval Agency	TUV, CSA, UR, CE
Load Current	10 A
Mounting Type	DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC, Zero Cross
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	36 VAC
Voltage - Input [Min]	18 VAC/DC

Part	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Load Current	Output Type	Package / Case	Mounting Type
Sensata-Crydom CKRA4820E	CE CSA TUV UR	18 VAC/DC	36 VAC	-40 °C	80 C	Screw Terminal	20 A	AC Zero Cross	SSR with Integrated Heat Sink	DIN Rail
Sensata-Crydom CKRA4810EP	CE CSA TUV UR	18 VAC/DC	36 VAC	-40 °C	80 C	Screw Terminal	10 A	AC Zero Cross	SSR with Integrated Heat Sink	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
