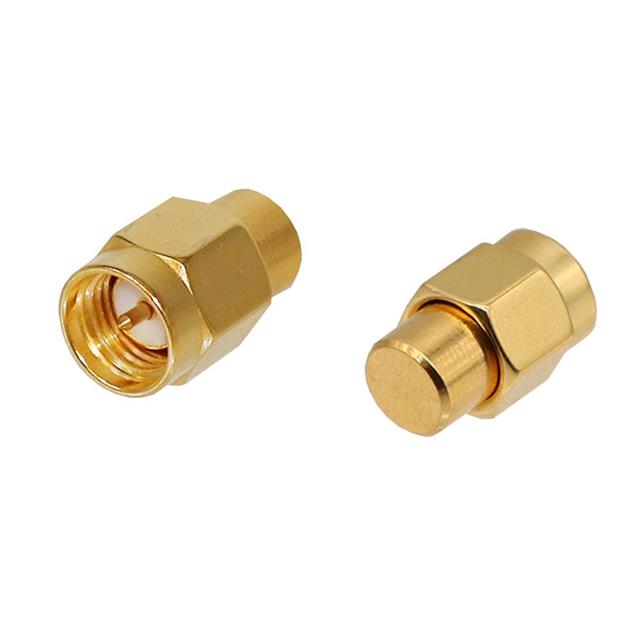

CGT-1180-M0-SMA-09
ActiveCinch Connectivity Solutions Trompeter
SMA MALE TERMINATION, DC-18 GHZ,
Deep-Dive with AI
Search across all available documentation for this part.
CGT-1180-M0-SMA-09
ActiveCinch Connectivity Solutions Trompeter
SMA MALE TERMINATION, DC-18 GHZ,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CGT-1180-M0-SMA-09 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Brass |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
CGT-1180 Series
| Part | Body Material | Mounting Type | Connector Type | Frequency - Max [Max] | Contact Finish | Impedance | Contact Material | Connector Style | Dielectric Material | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter | Brass | Cap Free Hanging | Male Pin Plug | 18 GHz | Gold | 50 Ohms | Brass | SMA | Polytetrafluoroethylene (PTFE) | Gold |
Cinch Connectivity Solutions Trompeter | Brass | Cap Free Hanging | Male Pin Plug | 18 GHz | Gold | 50 Ohms | Brass | N Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 25.78 | |
| 10 | $ 21.91 | |||
| 25 | $ 20.54 | |||
| 50 | $ 19.56 | |||
| 100 | $ 18.63 | |||
| 250 | $ 17.46 | |||
| 500 | $ 16.63 | |||
Description
General part information
CGT-1180 Series
Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
Documents
Technical documentation and resources
No documents available
