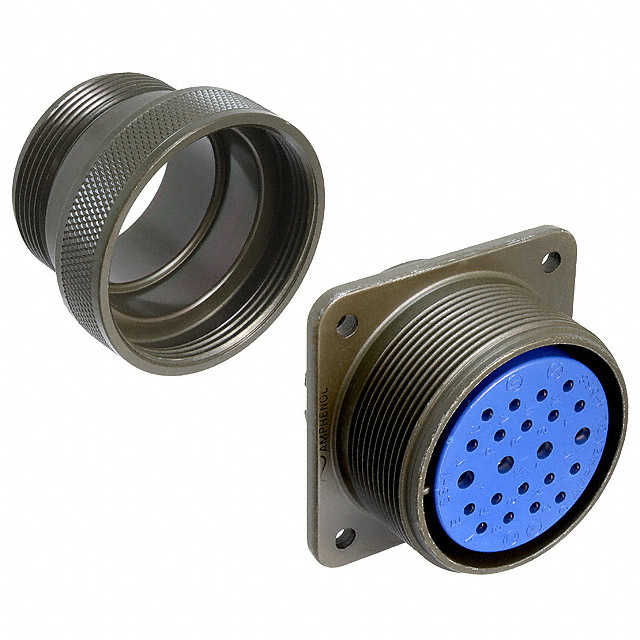

97-3100A-28-11S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 22P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
97-3100A-28-11S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 22P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-3100A-28-11S |
|---|---|
| Applications | Industrial, Automotive |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Backshell |
| Insert Material | Diallyl Phthalate (DAP) |
| Mounting Feature | Flange |
| Number of Positions | 22 positions |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 28-11 |
| Shielding | Unshielded |
97-3100A28 Series
| Part | Contact Finish - Mating | Color | Number of Positions | Connector Type | Orientation | Shielding | Primary Material | Insert Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Shell Material | Features | Shell Finish | Applications | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Silver | Olive Drab | 14 | Receptacle Female Sockets | N | Unshielded | Metal | Diallyl Phthalate (DAP) | Copper Alloy | -55 °C | 125 °C | Flange | Aluminum Alloy | Backshell | Olive Drab Chromate over Cadmium | Automotive Industrial | 28 | 20 | |
Amphenol Industrial Operations | Silver | Olive Drab | 35 | Receptacle Female Sockets | N | Unshielded | Metal | Diallyl Phthalate (DAP) | Copper Alloy | -55 °C | 125 °C | Flange | Aluminum Alloy | Backshell | Olive Drab Chromate over Cadmium | Automotive Industrial | 15 | 28 | |
Amphenol Industrial Operations | Silver | Olive Drab | 22 positions | Receptacle Female Sockets | N | Unshielded | Metal | Diallyl Phthalate (DAP) | Copper Alloy | -55 °C | 125 °C | Flange | Aluminum Alloy | Backshell | Olive Drab Chromate over Cadmium | Automotive Industrial | 28-11 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 90.24 | |
Description
General part information
97-3100A28 Series
22 Position Circular Connector Receptacle, Female Sockets Solder Cup
