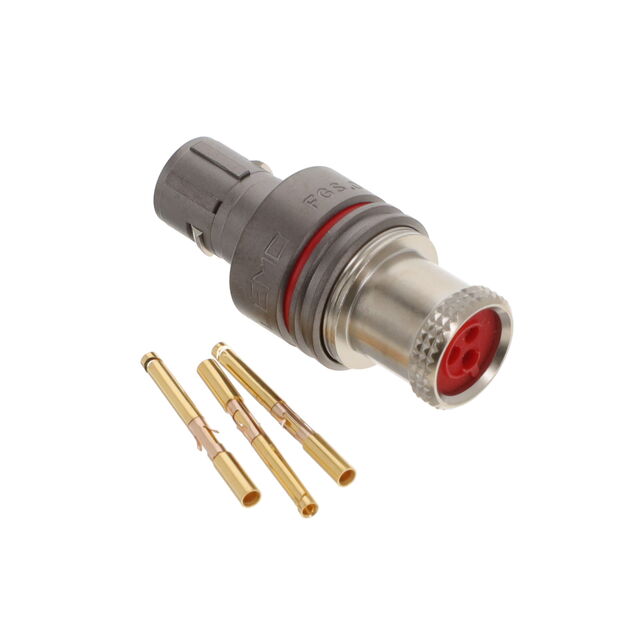

FGS.0F.303.XLM
ActiveLEMO
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FGS.0F.303.XLM
ActiveLEMO
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FGS.0F.303.XLM |
|---|---|
| Applications | Aerospace |
| Cable Opening [custom] | 0.354 in |
| Cable Opening [custom] | 9 mm |
| Color | Gray |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Material | Bronze |
| Current Rating (Amps) | 8 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -15 °C |
| Orientation | S |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 303 |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.64 | |
| 10 | $ 52.89 | |||
| 25 | $ 50.86 | |||
| 50 | $ 49.16 | |||
| 100 | $ 46.45 | |||
Description
General part information
FGS.0F Series
3 Position Circular Connector Plug, Female Sockets Crimp
