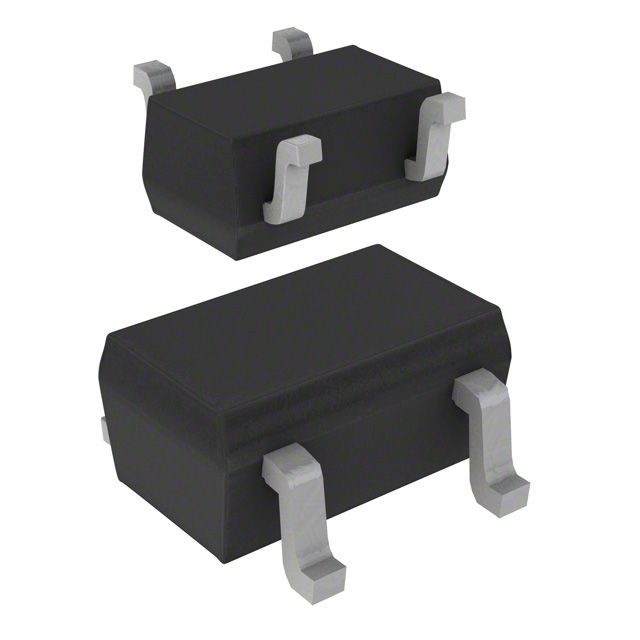

1SS402TE85LF
ActiveToshiba Semiconductor and Storage
DIODE ARRAY SCHOTT 20V 50MA USQ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SS402TE85LF
ActiveToshiba Semiconductor and Storage
DIODE ARRAY SCHOTT 20V 50MA USQ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SS402TE85LF |
|---|---|
| Current - Reverse Leakage @ Vr | 500 nA |
| Diode Configuration | 2 Independent |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125 °C |
| Package / Case | SC-82 |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | USQ |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.08 | ||
| 6000 | $ 0.08 | |||
| 9000 | $ 0.07 | |||
| 15000 | $ 0.07 | |||
| 21000 | $ 0.07 | |||
| 30000 | $ 0.06 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
1SS402 Series
Diode Array 2 Independent 20 V 50mA Surface Mount SC-82
