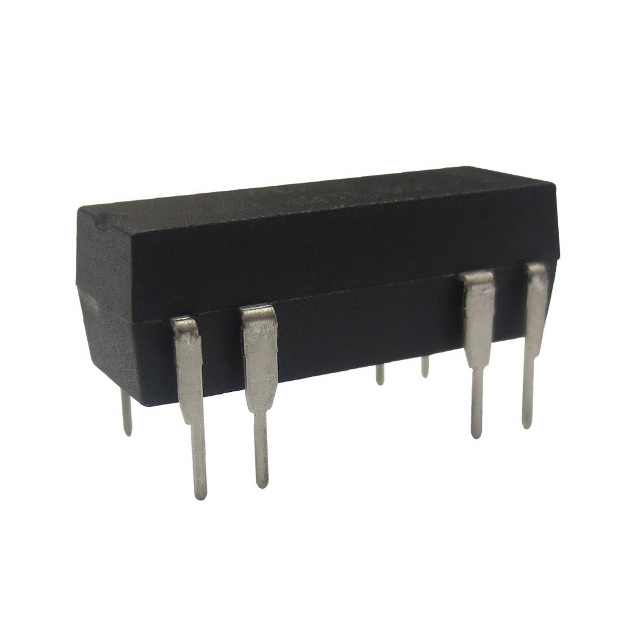

3563-1231-244
ActiveComus International
RELAY REED DIP SPDT .4A 24V W/DI
Deep-Dive with AI
Search across all available documentation for this part.
3563-1231-244
ActiveComus International
RELAY REED DIP SPDT .4A 24V W/DI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3563-1231-244 |
|---|---|
| Coil Current | 11 mA |
| Coil Resistance | 2.15 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 400 mA |
| Features | Diode, Electrostatic Shield |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 1.5 ms |
| Switching Voltage [Max] | 100 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.61 | |
| 10 | $ 4.99 | |||
| 25 | $ 4.77 | |||
| 50 | $ 4.61 | |||
| 100 | $ 4.45 | |||
| 300 | $ 4.21 | |||
| 500 | $ 4.10 | |||
| 1000 | $ 3.96 | |||
Description
General part information
3563-1231 Series
RELAY REED DIP SPDT .4A 24V W/DI
