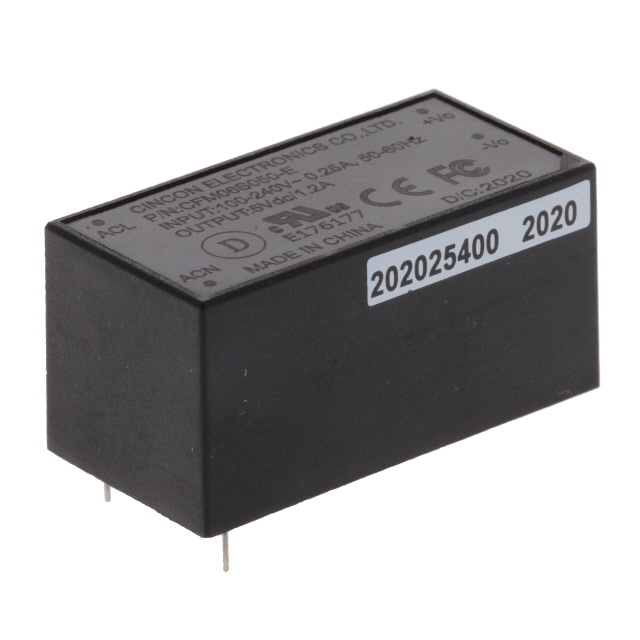

CFM06S050-E

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 5V 6W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 5V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	CFM06S050-E

Applications	Household Appliances, ITE (Commercial)
Approval Agency	D-Mark, cURus, CE, FCC
Current - Output (Max) [Max]	1.2 A
Efficiency	78 %
Features	Universal Input
Line Regulation	1 %
Load Regulation	5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	4-DIP Module
Power (Watts)	6 W
Size / Dimension [x]	41.1 mm
Size / Dimension [x]	1.62 "
Size / Dimension [y]	21 mm
Size / Dimension [y]	0.83 "
Size / Dimension [z]	20 mm
Size / Dimension [z]	0.79 in
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Output 1	5 V

Part	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Standard Number	Approval Agency	Package / Case	Load Regulation	Line Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Applications	Efficiency	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Features
Cincon Electronics Co. LTD CFM06S050-E	Enclosed	21 mm	41.1 mm	20 mm	0.83 "	1.62 "	0.79 in	1	6 W	1.2 A	60335-1 62368-1	CE cURus D-Mark FCC	4-DIP Module	5 %	1 %	-40 °C	80 ¯C	5 V	Household Appliances ITE (Commercial)	78 %	Through Hole	264 VAC 370 VDC	90 VAC 120 VDC	Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 1.2A 90 ~ 264 VAC, 120 ~ 370 VDC Input
