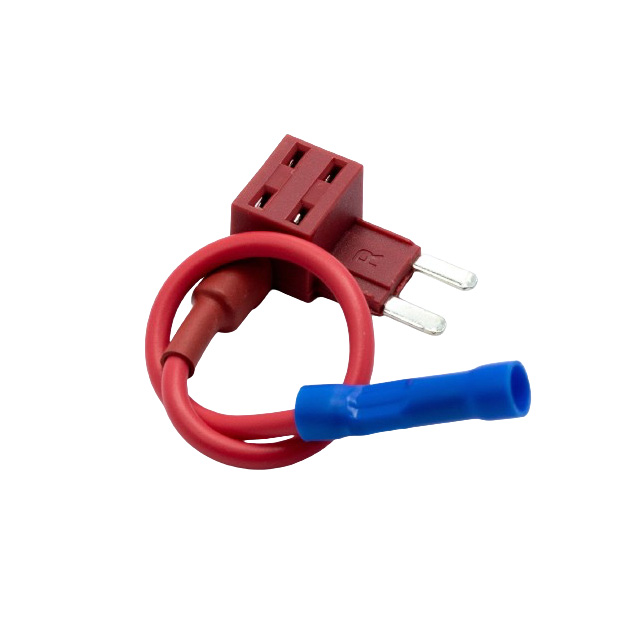

LPM-08-L
ActiveOptiFuse
MINI ADD-ON FUSEHOLDER 2 CKT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPM-08-L
ActiveOptiFuse
MINI ADD-ON FUSEHOLDER 2 CKT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPM-08-L |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating (Amps) | 30 A |
| For Use With/Related Products | APM, ANM |
| Fuse Size [x] | 0.433 " |
| Fuse Size [x] | 11 mm |
| Fuse Size [y] | 0.152 " |
| Fuse Size [y] | 3.85 mm |
| Fuse Type | Blade |
| Fuseholder Type | Holder |
| Mounting Type | Free Hanging (In-Line) |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Termination Style | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.90 | |
| 10 | $ 26.85 | |||
| 25 | $ 25.89 | |||
| 50 | $ 20.33 | |||
| 100 | $ 16.41 | |||
| 250 | $ 15.97 | |||
| 500 | $ 13.44 | |||
| 1000 | $ 12.39 | |||
Description
General part information
LPM-08 Series
Fuse Holder 30 A 58V 2 Circuit Blade Free Hanging (In-Line)
