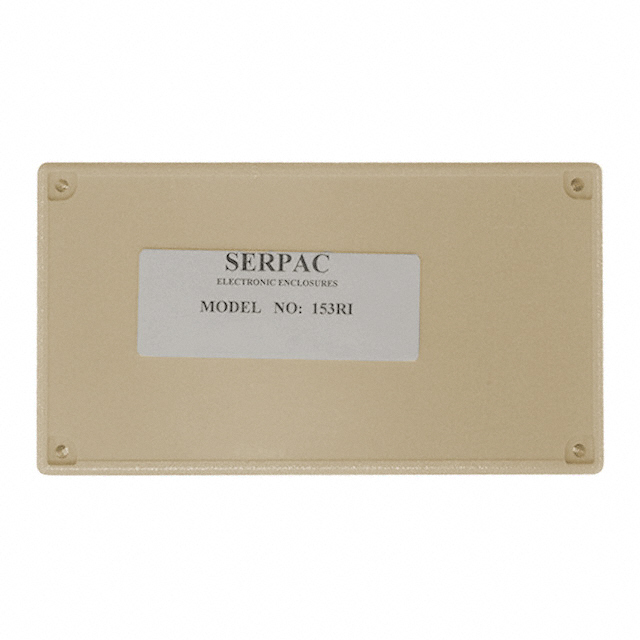

153RI,AL

Active

Serpac

BOX ABS ALMOND 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	153RI,AL

Area (L x W)	118 cm²
Area (L x W)	18.3 in²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.291 lb
Weight	132 g

Part	Ratings	Container Type	Thickness	Thickness	Color	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Design	Weight	Weight	Height [z]	Height [z]	Material	Material Flammability Rating
Serpac 153R,GY	IP40 NEMA 1	Box	2.54 mm	0.1 in	Gray	Front Access PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	Hand Held Split Sides	0.291 lb	132 g	63.5 mm	2.5 in	Plastic ABS	UL94 HB
Serpac 153RI,BK	IP40 NEMA 1	Box	2.54 mm	0.1 in	Black	Front Access PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	Hand Held Split Sides	0.291 lb	132 g	63.5 mm	2.5 in	Plastic ABS	UL94 HB
Serpac 153RI,AL	IP40 NEMA 1	Box	2.54 mm	0.1 in	Almond	Front Access PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	Hand Held Split Sides	0.291 lb	132 g	63.5 mm	2.5 in	Plastic ABS	UL94 HB
Serpac 153RI,GY	IP40 NEMA 1	Box	2.54 mm	0.1 in	Gray	Front Access PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	Hand Held Split Sides	0.291 lb	132 g	63.5 mm	2.5 in	Plastic ABS	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.18

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.500" (63.50mm)
