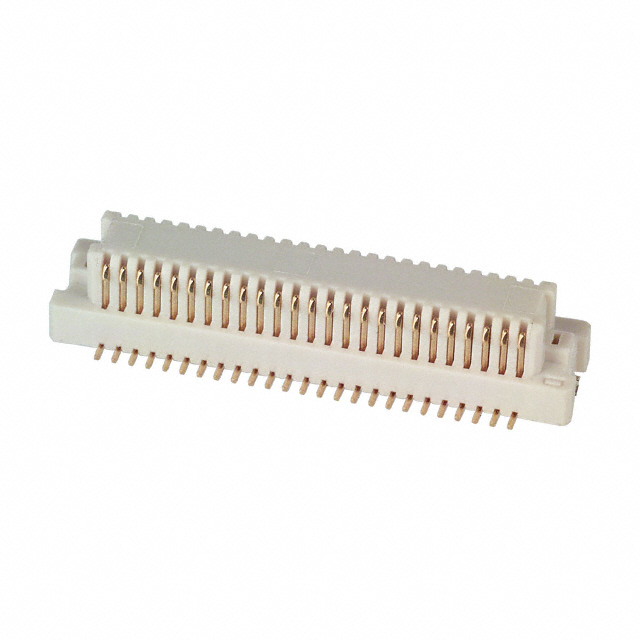

DF15B(0.8)-50DS-0.65V(50)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 50POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15B(0.8)-50DS-0.65V(50)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.118 in
Height Above Board	3 mm
Mated Stacking Heights	5 mm, 7 mm, 4 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Connector Type	Features	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Rows	Mounting Type	Contact Finish	Number of Positions
Hirose Electric USA, Inc. DF15B(0.8)-50DS-0.65V(50)	Center Strip Contacts Receptacle	Solder Retention	0.026 in	0.65 mm	4 mm 5 mm 7 mm	0.118 in	3 mm	2	Surface Mount	Gold	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
