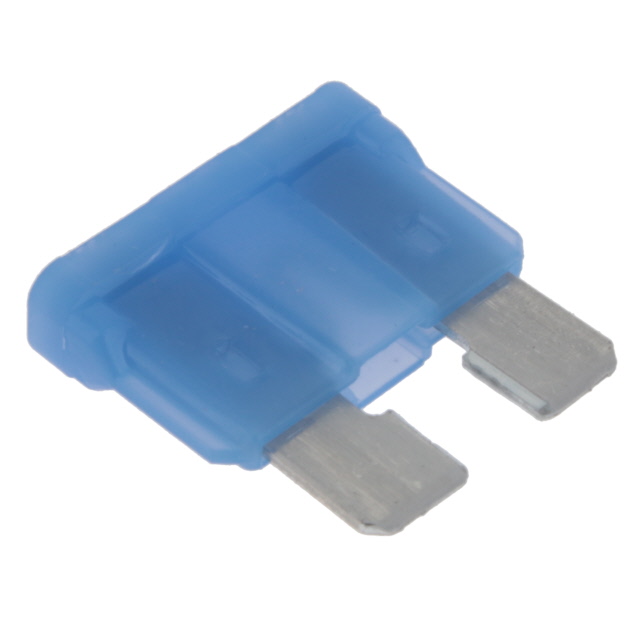

0287015.U
ActiveLittelfuse/Commercial Vehicle Products
FUSE - ATOF 32VDC NYLON 15A 500 PC/ BULK ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
0287015.U
ActiveLittelfuse/Commercial Vehicle Products
FUSE - ATOF 32VDC NYLON 15A 500 PC/ BULK ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0287015.U |
|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Blue |
| Current Rating (Amps) | 15 A |
| DC Cold Resistance | 4.8 Ohms |
| Fuse Type | Automotive |
| Melting I˛t | 340 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | ATO, Blade, ATC |
| Size / Dimension [x] | 0.752 in |
| Size / Dimension [x] | 19.1 mm |
| Size / Dimension [y] | 0.201 " |
| Size / Dimension [y] | 5.1 mm |
| Size / Dimension [z] | 12.3 mm |
| Size / Dimension [z] | 0.484 in |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0287015.U Series
This 15 A ATOF® 32V automotive blade fuses replaced an obsolete ATO Series 257 fuse with the same ampere rating. Automakers around the world consider ATOF fuses standard equipment for protecting low-voltage circuits.
