24IMX70-12-0TG

Active

EOS Power India Private Ltd

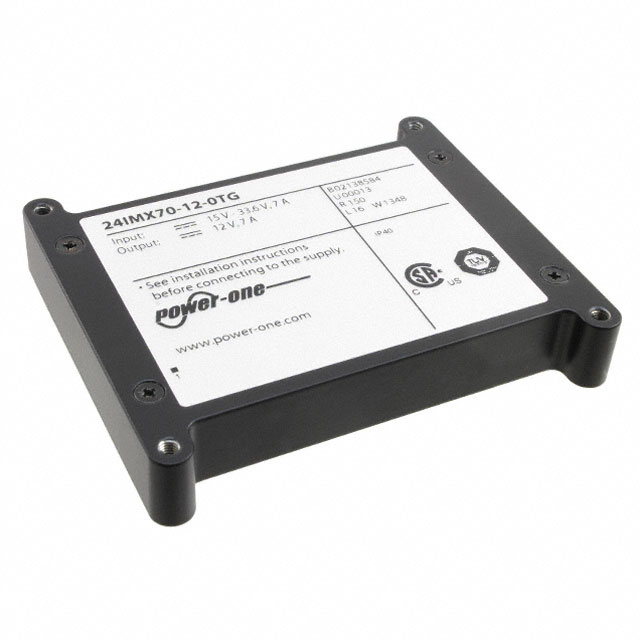

MODULE DC-DC 24VIN 1-OUT 12V 7A 70W 17-PIN

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

MODULE DC-DC 24VIN 1-OUT 12V 7A 70W 17-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	24IMX70-12-0TG

Applications	ITE (Commercial)
Current - Output (Max)	7 A
Efficiency	90 %
Features	OTP, SCP, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-40 °C
Package / Case	19-DIP Module, 17 Leads
Power (Watts)	84 W
Size / Dimension [x]	3 "
Size / Dimension [x]	76.2 mm
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Size / Dimension [z]	0.49 in
Size / Dimension [z]	12.5 mm
Type	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	33.6 V
Voltage - Input (Min) [Min]	15 V
Voltage - Isolation	2.1 kV
Voltage - Output 1	12 V

Part	Voltage - Isolation	Current - Output (Max)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1	Package / Case	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Type	Mounting Type	Control Features
EOS Power India Private Ltd 24IMX70-12-0TG	2.1 kV	7 A	ITE (Commercial)	-40 °C	203 °F	OCP OTP SCP	0.49 in	12.5 mm	2.5 in	3 "	76.2 mm	63.5 mm	84 W	33.6 V	12 V	19-DIP Module 17 Leads	90 %	15 V	1	Conformal Coated Isolated Module	Through Hole
EOS Power India Private Ltd 24IMX70-15-0ITG	2.1 kV	5.7 A	ITE (Commercial)	-40 °C	203 °F	OCP OTP OVP Remote On/Off SCP UVLO	0.49 in	12.5 mm	2.5 in	3 "	76.2 mm	63.5 mm	86 W	33.6 V	15 V	19-DIP Module 17 Leads	92 %	15 V	1	Conformal Coated Isolated Module	Through Hole	Active High Enable
EOS Power India Private Ltd 24IMX70-12-0ITZG	2.1 kV	7 A	ITE (Commercial)	-40 °C	203 °F	OCP OTP OVP Remote On/Off SCP UVLO							84 W	33.6 V	12 V	19-DIP Module 17 Leads	93 %	15 V	1	Conformal Coated Isolated Module	Through Hole	Active High Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module, Conformal Coated DC DC Converter 1 Output 12V 7A 15V - 33.6V Input
