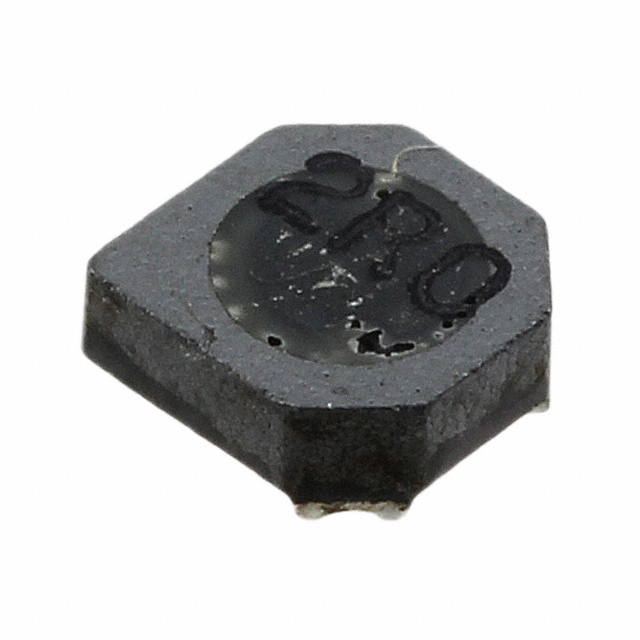

SRU3014-220Y
ActiveBourns Inc.
IND3.3X3.5X1.4MM,22UH30%0.32A,SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRU3014-220Y
ActiveBourns Inc.
IND3.3X3.5X1.4MM,22UH30%0.32A,SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRU3014-220Y |
|---|---|
| Current - Saturation (Isat) | 360 mA |
| Current Rating (Amps) | 320 mA |
| DC Resistance (DCR) [Max] | 875 mOhm |
| Frequency - Self Resonant | 25 MHz |
| Height - Seated (Max) | 1.6 mm |
| Height - Seated (Max) [Max] | 0.063 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 35, 2.52 MHz |
| Shielding | Shielded |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [y] | 3.3 mm |
| Size / Dimension [y] | 0.13 in |
| Tolerance | 30 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRU3014 Series
22 µH Shielded Drum Core, Wirewound Inductor 320 mA 875mOhm Max Nonstandard
