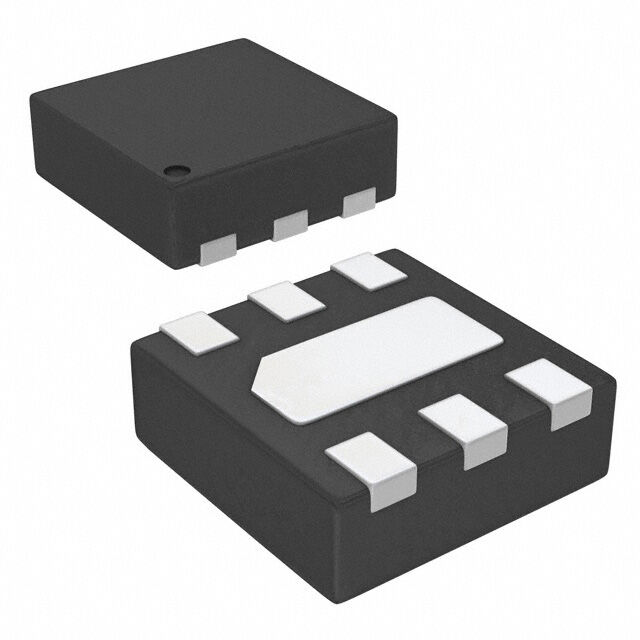

ECLAMP2522P.TCT - RCLAMP0504PBTCT

ECLAMP2522P.TCT

Active
Semtech Corporation

ESD PROTECTION DEVICE, DFN1616, 6 PINS, 5.25 V, EMICLAMP SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN
ECLAMP2522P.TCT - RCLAMP0504PBTCT

ECLAMP2522P.TCT

Active
Semtech Corporation

ESD PROTECTION DEVICE, DFN1616, 6 PINS, 5.25 V, EMICLAMP SERIES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Technical Specifications

Parameters and characteristics for this part

SpecificationECLAMP2522P.TCT
ApplicationsGeneral Purpose
Mounting TypeSurface Mount
Number of Circuits1
Package / Case6-UFDFN Exposed Pad
Supplier Device PackageSLP1616P6 (1.6x1.6)
TechnologyMixed Technology

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.41
10$ 0.89
100$ 0.59
500$ 0.46
1000$ 0.42
Digi-Reel® 1$ 1.41
10$ 0.89
100$ 0.59
500$ 0.46
1000$ 0.42
Tape & Reel (TR) 3000$ 0.34
6000$ 0.34
9000$ 0.33
NewarkEach (Supplied on Full Reel) 3000$ 0.37
6000$ 0.35
12000$ 0.34

Description

General part information

ECLAMP2522 Series

Mixed Technology TVS Device 1 Circuit Surface Mount SLP1616P6 (1.6x1.6)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
