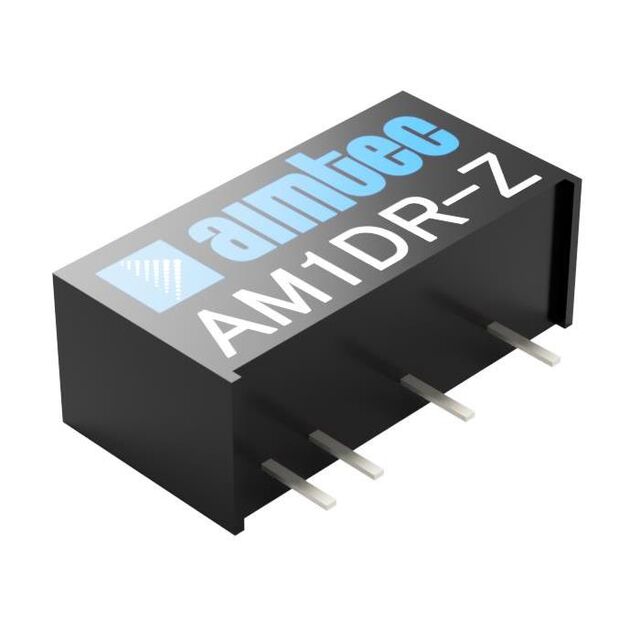

AM1DR-0505SH30Z

Active

aimtec

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1DR-0505SH30Z

Active

aimtec

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM1DR-0505SH30Z

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	200 mA
Efficiency	68 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Size / Dimension [x]	19.5 mm
Size / Dimension [x]	0.77 in
Size / Dimension [y]	0.28 in
Size / Dimension [y]	7.2 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

AM1DR Series

Part	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Type	Voltage - Isolation	Approval Agency	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Power (Watts)
aimtec AM1DR-2405SH30-NZ	200 mA	5 V	22.8 V	25.2 V	0.37 in	9.5 mm	0.77 in	6 mm	19.6 mm	0.24 "	67 %	Isolated Module	3000 V	cULus cURus	1	Through Hole	85 °C	-40 °C	ITE (Commercial)
aimtec AM1DR-0505S-RZ	200 mA	5 V	4.5 V	5.5 V	0.39 in	10 mm	0.77 in	7.2 mm	19.5 mm	0.28 in	65 %	Isolated Module	1000 V	CE	1	Through Hole	85 °C	-40 °C	ITE (Commercial)	7-SIP Module 4 Leads
aimtec AM1DR-1209S-RZ		9 V	10.8 V	13.2 V	0.39 in	10 mm	0.76 "	7.2 mm	19.5 mm	0.28 in	67 %	Isolated Module	1000 V	CE	1	Through Hole	85 °C	-40 °C	ITE (Commercial)
aimtec AM1DR-0505S-NZ	200 mA	5 V	4.75 V	5.25 V	0.4 "	10.2 mm	0.77 in	6 mm	19.6 mm	0.24 "	67 %	Isolated Module	1000 V		1	Through Hole	85 °C	-40 °C	ITE (Commercial)	7-SIP Module 4 Leads
aimtec AM1DR-1205S-RZ	200 mA	5 V	10.8 V	13.2 V	0.39 in	10 mm	0.76 "	7.2 mm	19.5 mm	0.28 in	63 %	Isolated Module	1000 V	CE	1	Through Hole	85 °C	-40 °C	ITE (Commercial)
aimtec AM1DR-0509SH30JZ		9 V	4.75 V	5.25 V	0.38 in	10.2 mm	0.77 in	6 mm	19.7 mm	0.24 "	71 %	Isolated Module	3000 V	cULus cURus	1	Through Hole	85 °C	-40 °C	ITE (Commercial)
aimtec AM1DR-1203S-RZ	303 mA	3.3 V	10.8 V	13.2 V	0.39 in	10 mm	0.76 "	7.2 mm	19.5 mm	0.28 in	61 %	Isolated Module	1000 V	CE	1	Through Hole	85 °C	-40 °C	ITE (Commercial)
aimtec AM1DR-0505SH30Z	200 mA	5 V	4.5 V	5.5 V	0.39 in	10 mm	0.77 in	7.2 mm	19.5 mm	0.28 in	68 %	Isolated Module	3000 V	CE	1	Through Hole	85 °C	-40 °C	ITE (Commercial)	7-SIP Module 4 Leads
aimtec AM1DR-0515S-RZ	67 mA	15 V	4.5 V	5.5 V	0.39 in	10 mm	0.76 "	7.2 mm	19.5 mm	0.28 in	65 %	Isolated Module	1000 V	CE	1	Through Hole	85 °C	-40 °C	ITE (Commercial)
aimtec AM1DR-0509SJZ		9 V	4.75 V	5.25 V	0.4 "	10.2 mm	0.77 in	6 mm	19.6 mm	0.24 "	71 %	Isolated Module	1.5 kV		1	Through Hole	85 °C	-40 °C	ITE (Commercial)	7-SIP Module 4 Leads	999 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.39
		5	$ 12.15
		10	$ 11.91
		15	$ 11.68
		25	$ 11.45
		50	$ 11.22
		100	$ 11.01
		250	$ 10.79
		500	$ 10.58

Description

General part information

AM1DR Series

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
