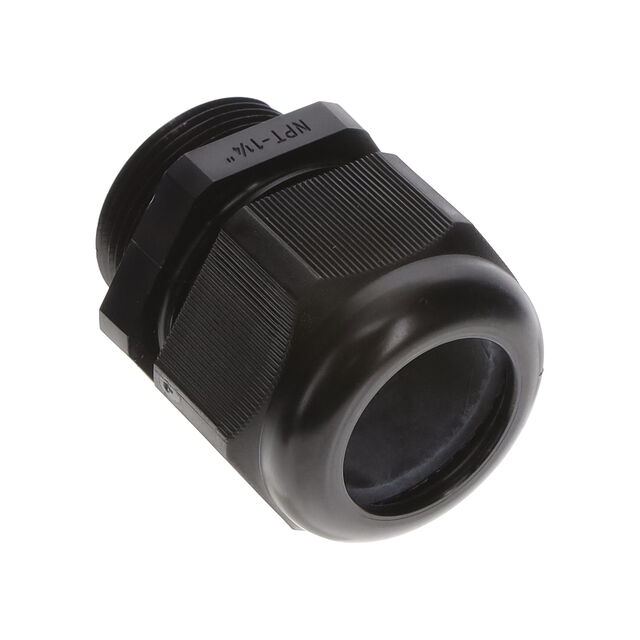

50.114 PA/SW

Active

Jacob GmbH

CABLE GLAND 22-32MM 1 1/4" NPT

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 22-32MM 1 1/4" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	50.114 PA/SW

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	22 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.866 in
Thread Length	0.709 in
Thread Length	18.01 mm
Thread Size
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Type	Thread Length	Thread Length	Material	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max] [diameter]
Jacob GmbH 50.114/EMV/R	3 mm	0.118 in	O-Ring Seal	9 mm	0.354 in	100 °C	-40 °C	Silver	Cable Gland	8 mm	0.315 in	Brass Nickel Plated	IP68 - Dust Tight Waterproof
Jacob GmbH 50.114 PA/SW	22 mm	0.866 in	Sealing Ring			100 °C	-40 °C	Black	Cable Gland	18.01 mm	0.709 in		IP68 - Dust Tight Waterproof	32 mm	1.26 in
Jacob GmbH 50.114 PA/RSW	20 mm	0.787 in	Sealing Ring		26 mm	100 °C	-40 °C	Black	Cable Gland	18.01 mm	0.709 in		IP68 - Dust Tight Waterproof			1.024 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 1 1/4" NPT Black
