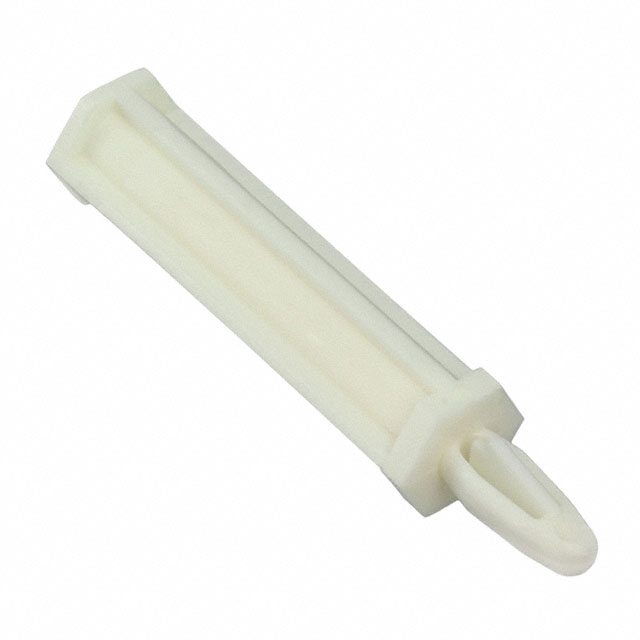

TCBS-20-19
ActiveEssentra Access Solutions
BRD SPT SNAP LCK SCRW MNT 1 1/4"
Deep-Dive with AI
Search across all available documentation for this part.
TCBS-20-19
ActiveEssentra Access Solutions
BRD SPT SNAP LCK SCRW MNT 1 1/4"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TCBS-20-19 |
|---|---|
| Between Board Height | 31.75 mm |
| Between Board Height | 1.25 in |
| Between Board Height | |
| Features | M3.5 Thread |
| Holding Type | Snap Lock |
| Length - Overall [x] | 1.65 in |
| Length - Overall [x] | 41.91 mm |
| Material | Nylon |
| Mounting Type | Screw Mount |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.90 | |
| 5 | $ 0.77 | |||
| 10 | $ 0.64 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.44 | |||
Description
General part information
TCBS-20 Series
Board Support Snap Lock / Screw Mount Nylon 1.250" (31.75mm) 1 1/4"
Documents
Technical documentation and resources
No documents available
