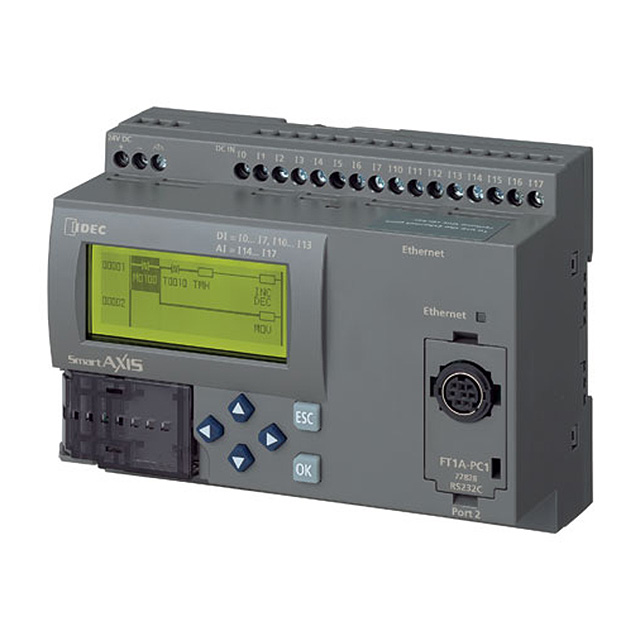

FT1A-H24RC

Active

IDEC

CPU MODULE, SMARTAXIS FT1A SERIES, 16 INPUTS, 8 RELAY OUTPUTS, 100 TO 240 VAC, DISPLAY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FT1A-H24RC

Approval Agency	cULus, CE
Communications	Option Cards Available, Ethernet, USB
Expandable	1 Module Max
Features	Battery Backup (Lithium)
Memory Size	47.4 KB
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	16
Number of Inputs and Type [custom]	Digital
Number of Outputs and Type [custom]	Relay
Number of Outputs and Type [x]	8
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

FT1A Series

Part	Approval Agency	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Communications	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Memory Size	Expandable	Number of Outputs and Type [x]	Number of Outputs and Type [custom]	Features	Number of Outputs and Type	Number of Outputs and Type	Expandable [Max]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Voltage - Supply	Type	Ingress Protection	Display Type	Case Color	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]
IDEC FT1A-H24RC	CE cULus	100 VAC	240 VAC	DIN Rail	Ethernet Option Cards Available USB	16	Digital	47.4 KB	1 Module Max	8	Relay	Battery Backup (Lithium)
IDEC FT1A-H48SA	CE cULus			DIN Rail	Ethernet Option Cards Available USB			47.4 KB				Battery Backup (Lithium)	18	Solid State	2 Racks	22	8	24 VDC
IDEC FT1A-C14SA-S												Expansion Interface						24 VDC	Touchscreen	IP66	Color	Silver	FT1A Series	55 °C	-20 C
IDEC FT1A-B24RA	CE cULus			DIN Rail	Ethernet Option Cards Available USB			47.4 KB	1 Module Max	8	Relay	Battery Backup (Lithium)				12	4	24 VDC			No Display
IDEC FT1A-C12RA-B												Expansion Interface						24 VDC	Touchscreen	IP66	Color	Black	FT1A Series	55 °C	-20 C
IDEC FT1A-M14KA-W												Expansion Interface						24 VDC	Touchscreen	IP66	Monochrome	Gray	FT1A Series
IDEC FT1A-B40RKA	CE cULus			DIN Rail	Ethernet Option Cards Available USB			47.4 KB				Battery Backup (Lithium)			2 Racks	18	6	24 VDC			No Display					12	4
IDEC FT1A-H12RA	CE cULus			DIN Rail	USB			12 KB			Relay	Battery Backup (Lithium)				6	2	24 VDC										4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 556.10
		10	$ 430.16
		25	$ 385.63
Newark	Each	1	$ 578.35
		5	$ 549.43
		10	$ 537.87
		25	$ 520.52

Description

General part information

FT1A Series

Programmable Logic Controller (PLC) DIN Rail 100 ~ 240VAC
