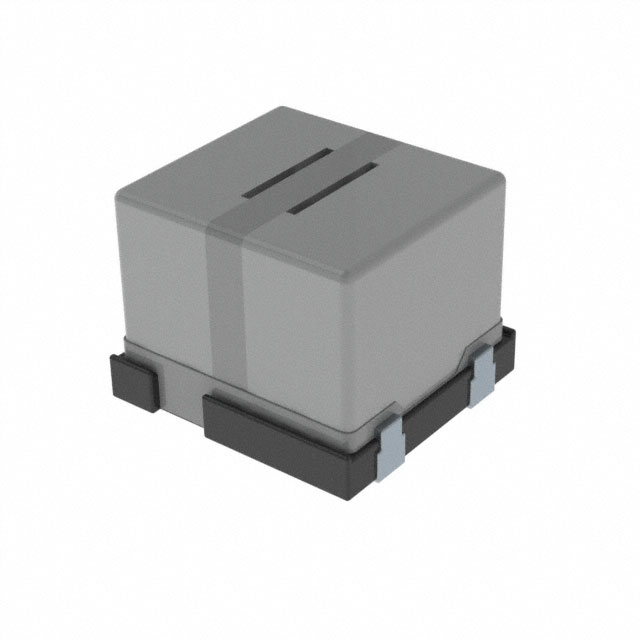

1211EA-1004=P3
ObsoleteMurata Power Solutions Inc.
FIXED IND 10UH 2.8A 25 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
1211EA-1004=P3
ObsoleteMurata Power Solutions Inc.
FIXED IND 10UH 2.8A 25 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1211EA-1004=P3 |
|---|---|
| Current - Saturation (Isat) | 5 A |
| Current Rating (Amps) | 2.8 A |
| DC Resistance (DCR) | 25 mOhm |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 10.4 mm |
| Size / Dimension [x] | 0.409 in |
| Size / Dimension [y] | 0.421 " |
| Size / Dimension [y] | 10.7 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1211EA Series
10 µH Unshielded Drum Core, Wirewound Inductor 2.8 A 25mOhm Max Nonstandard
Documents
Technical documentation and resources
No documents available
