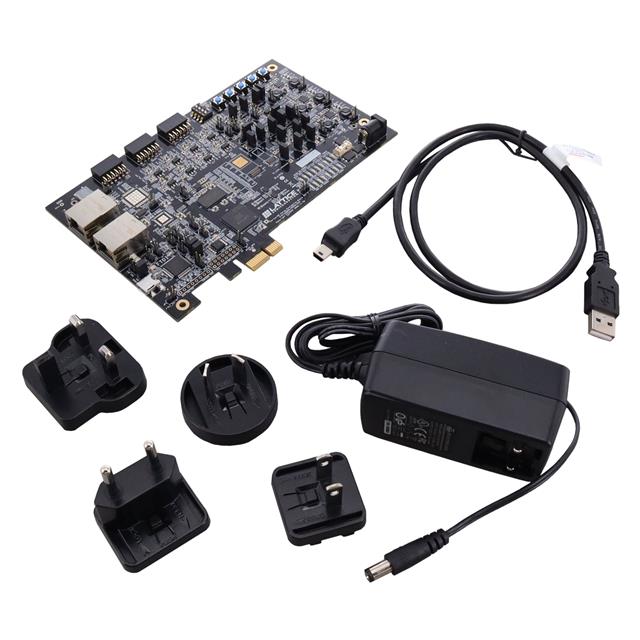

LFD2NX-VERSA-B-EVN

Active

LATTICE SEMICONDUCTOR

CERTUS-NX VERSA EVALUATION BOARD REV B ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LFD2NX-VERSA-B-EVN

Active

LATTICE SEMICONDUCTOR

CERTUS-NX VERSA EVALUATION BOARD REV B ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFD2NX-VERSA-B-EVN

Contents	Board(s)
For Use With/Related Products	LFD2NX-40
Platform	Certus-NX FPGA Versa PCIe Card
Utilized IC / Part	LFD2NX-40

LFD2NX-40 Series

Part	Total RAM Bits	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Logic Elements/Cells	Package / Case	Mounting Type	Supplier Device Package	Number of LABs/CLBs	Number of I/O	Utilized IC / Part	Platform	Contents	For Use With/Related Products
LATTICE SEMICONDUCTOR LFD2NX-40-9BG196C	1548288 Bits	0 °C	85 °C	1.05 V	0.95 V	39000	196-LFBGA	Surface Mount	196-CABGA (12x12)	9750
LATTICE SEMICONDUCTOR LFD2NX-40-9MG121C	1548288 Bits	0 °C	85 °C	1.05 V	0.95 V	39000	121-VFBGA CSPBGA	Surface Mount	121-CSFBGA (6x6)	9750	71
LATTICE SEMICONDUCTOR LFD2NX-VERSA-B-EVN												LFD2NX-40	Certus-NX FPGA Versa PCIe Card	Board(s)	LFD2NX-40
LATTICE SEMICONDUCTOR LFD2NX-40-7MG121I	1548288 Bits	-40 C	100 °C	1.05 V	0.95 V	39000	121-VFBGA CSPBGA	Surface Mount	121-CSFBGA (6x6)	9750	71
LATTICE SEMICONDUCTOR LFD2NX-40-7BG256I	1548288 Bits	-40 C	100 °C	1.05 V	0.95 V	39000	256-LFBGA	Surface Mount	256-CABGA (14x14)	9750	192
LATTICE SEMICONDUCTOR LFD2NX-40-8MG121C	1548288 Bits	0 °C	85 °C	1.05 V	0.95 V	39000	121-VFBGA CSPBGA	Surface Mount	121-CSFBGA (6x6)	9750	71
LATTICE SEMICONDUCTOR LFD2NX-40-7MG121A	1548288 Bits	-40 °C	125 ¯C	1.05 V	0.95 V	39000	121-VFBGA CSPBGA	Surface Mount	121-CSFBGA (6x6)	9750	71
LATTICE SEMICONDUCTOR LFD2NX-40-8MG121I	1548288 Bits	-40 C	100 °C	1.05 V	0.95 V	39000	121-VFBGA CSPBGA	Surface Mount	121-CSFBGA (6x6)	9750	71
LATTICE SEMICONDUCTOR LFD2NX-40-8BG196C	1548288 Bits	0 °C	85 °C	1.05 V	0.95 V	39000	196-LFBGA	Surface Mount	196-CABGA (12x12)	9750
LATTICE SEMICONDUCTOR LFD2NX-40-9MG121I	1548288 Bits	-40 C	100 °C	1.05 V	0.95 V	39000	121-VFBGA CSPBGA	Surface Mount	121-CSFBGA (6x6)	9750	71

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 275.00
Newark	Each	1	$ 294.58
		5	$ 290.46
		10	$ 286.34
		25	$ 269.86

Description

General part information

LFD2NX-40 Series

Certus-NX FPGA Versa PCIe Card LFD2NX-40 Certus™-NX FPGA Evaluation Board
