GSA.8827.A.101111
ActiveTAOGLAS

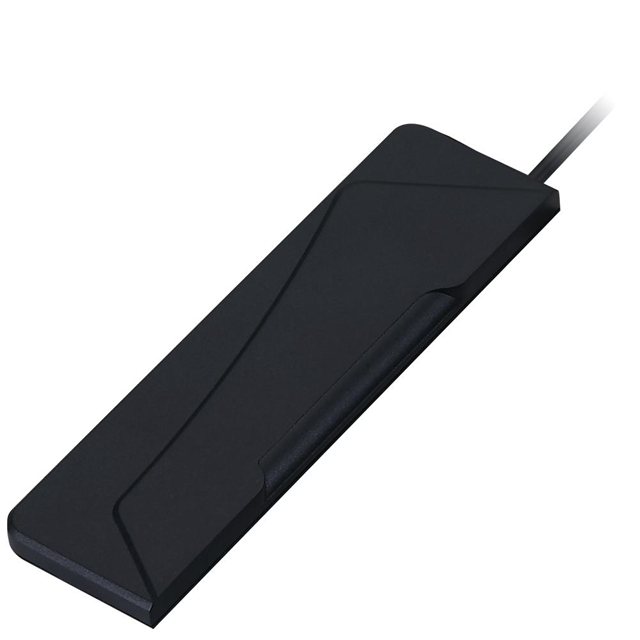

RF ANTENNA, 2.49 TO 2.69GHZ, I-BAR, 1.67DBI, 50 OHM, LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
GSA.8827.A.101111
ActiveTAOGLAS
RF ANTENNA, 2.49 TO 2.69GHZ, I-BAR, 1.67DBI, 50 OHM, LINEAR
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | GSA.8827.A.101111 |
|---|---|
| Antenna Type | Flat Bar |
| Applications | 4G, 3G, 5G, 2G |
| Features | Cable - 1m |
| Frequency (Center/Band) | 750 MHz, 900 MHz, 850 MHz, 2.1 GHz, 1.9 GHz, 1.575 GHz, 2.6 GHz, 1.8 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.17 GHz, 960 MHz, 2.69 GHz |
| Frequency Range [Min] | 2.49 GHz, 703 MHz, 1.71 GHz |
| Gain | 1.57 dBi, 2.65 dBi, 1.71 dBi, 2.83 dBi, 2.93 dBi, 2.14 dBi, 1.49 dBi, 2.32 dBi |
| Height (Max) | 7.7 mm |
| Height (Max) | 0.303 in |
| Mounting Type | Adhesive |
| Number of Bands | 8 |
| Power - Max [Max] | 50 W |
| RF Family/Standard | Cellular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GSA.8827 Series
RF ANTENNA 2G, 3G, 4G, 5G Flat Bar SMA Male Adhesive
