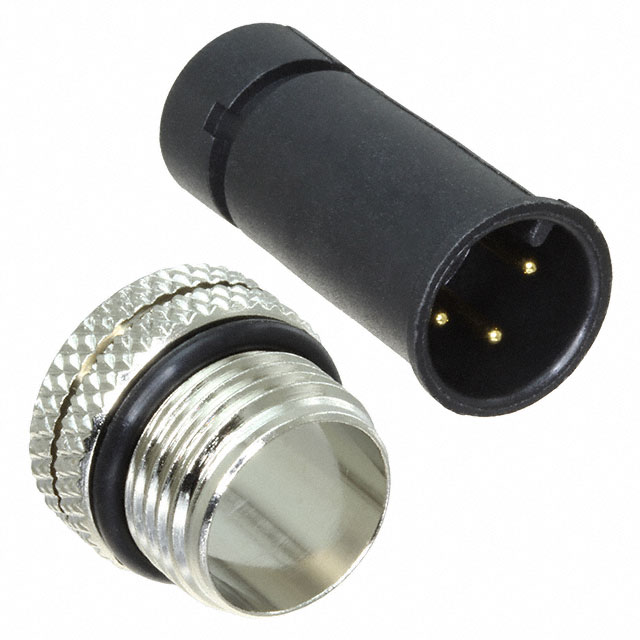

858-R03-103RLU4

Active

MH Connectors

CONN RCPT MALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT MALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	858-R03-103RLU4

Cable Opening [custom]	0.37 in
Cable Opening [custom]	9.4 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	4 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-3
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Shielding	Insert Material	Shell Size - Insert	Orientation	Connector Type	Material Flammability Rating	Shell Material	Primary Material	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Color	Mounting Type	Contact Material	Voltage Rating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Shell Finish	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
MH Connectors 858-R03-103RLU1	Unshielded	Polybutylene Terephthalate (PBT)	M12-3	A	Male Pins Receptacle	UL94 V-0	Brass	Metal	Gold	0.37 in	9.4 mm	Black Silver	Free Hanging (In-Line)	Brass	250 VDC	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Flash	Nickel	4 A
MH Connectors 858-R03-103RLU4	Unshielded	Polybutylene Terephthalate (PBT)	M12-3	A	Male Pins Receptacle	UL94 V-0	Brass	Metal	Gold	0.37 in	9.4 mm	Black Silver	Free Hanging (In-Line)	Brass	250 VDC	IP67 - Dust Tight Waterproof	85 °C	-40 °C		Nickel	4 A	10 çin	0.25 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.75

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
