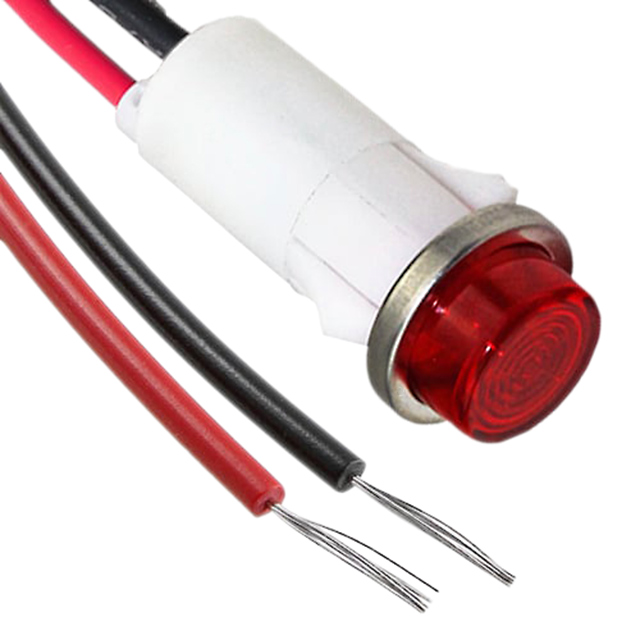

1092C1-125VAC

Active

Visual Communications Company - VCC

LED PANEL INDICATOR RED 125V

Deep-Dive with AI

Search across all available documentation for this part.

1092C1-125VAC

Active

Visual Communications Company - VCC

LED PANEL INDICATOR RED 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1092C1-125VAC

Current	25 mA
Lamp Color	Red
Lens Color	Red
Lens Transparency	Diffused
Millicandela Rating	13000 mcd
Panel Cutout Dimensions	12.7 mm
Panel Cutout Dimensions	0.5 in
Panel Cutout Shape	Round
Ratings	AC
Termination Style	4.6 in
Termination Style	116.84 mm
Termination Style	Wire Leads
Type	LED
Voltage	125 V

1092C Series

Part	Ratings	Voltage	Termination Style	Current	Type	Lamp Color	Millicandela Rating	Panel Cutout Shape	Lens Color	Lens Transparency	Panel Cutout Dimensions	Panel Cutout Dimensions	Termination Style	Termination Style	Wavelength - Peak	Lens Size	Lens Size
Visual Communications Company - VCC 1092C1-250VAC	AC	250 V	Wire Leads - 4.8" (121.92mm)	25 mA	LED	Red	13000 mcd	Round	Red	Diffused	12.7 mm	0.5 in
Visual Communications Company - VCC 1092C6-28V	DC	28 V	Wire Leads	25 mA	LED	Blue	3200 mcd	Round	Blue	Clear	12.7 mm	0.5 in	4.6 in	116.84 mm
Visual Communications Company - VCC 1092C5-12V	DC	12 V	Wire Leads	25 mA	LED	Green	12000 mcd	Round	Green	Diffused	12.7 mm	0.5 in	4.6 in	116.84 mm
Visual Communications Company - VCC 1092C3-250VAC	AC	250 V	Wire Leads - 4.8" (121.92mm)	25 mA	LED	Amber	13000 mcd	Round	Amber	Diffused	12.7 mm	0.5 in
Visual Communications Company - VCC 1092C2-12V	AC/DC	12 V	Wire Leads - 4.8" (121.92mm)	25 mA	LED	Clear	7000 mcd	Round	Colorless	Clear	12.7 mm	0.5 in			468 nm	T-1 3/4	5 mm
Visual Communications Company - VCC 1092C1-12V	DC	12 V	Wire Leads	25 mA	LED	Red	13000 mcd	Round	Red	Diffused	12.7 mm	0.5 in	4.6 in	116.84 mm
Visual Communications Company - VCC 1092C1-125VAC	AC	125 V	Wire Leads	25 mA	LED	Red	13000 mcd	Round	Red	Diffused	12.7 mm	0.5 in	4.6 in	116.84 mm
Visual Communications Company - VCC 1092C3-125VAC	AC	125 V	Wire Leads	25 mA	LED	Amber	13000 mcd	Round	Amber	Diffused	12.7 mm	0.5 in	4.6 in	116.84 mm
Visual Communications Company - VCC 1092C2-125VAC	AC	125 V	Wire Leads - 4.8" (121.92mm)	25 mA	LED	Clear	7000 mcd	Round	Colorless	Clear	12.7 mm	0.5 in			468 nm	T-1 3/4	5 mm
Visual Communications Company - VCC 1092C2-28V	AC/DC	28 V	Wire Leads - 4.8" (121.92mm)	25 mA	LED	Clear	7000 mcd	Round	Colorless	Clear	12.7 mm	0.5 in			468 nm	T-1 3/4	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.60
		10	$ 4.67
		100	$ 3.82
		500	$ 3.22
		1000	$ 2.96
		2000	$ 2.83

Description

General part information

1092C Series

LED Panel Indicator Red Diffused 125V 25mA Wire Leads - 4.6" (116.84mm)

Documents

Technical documentation and resources

No documents available
