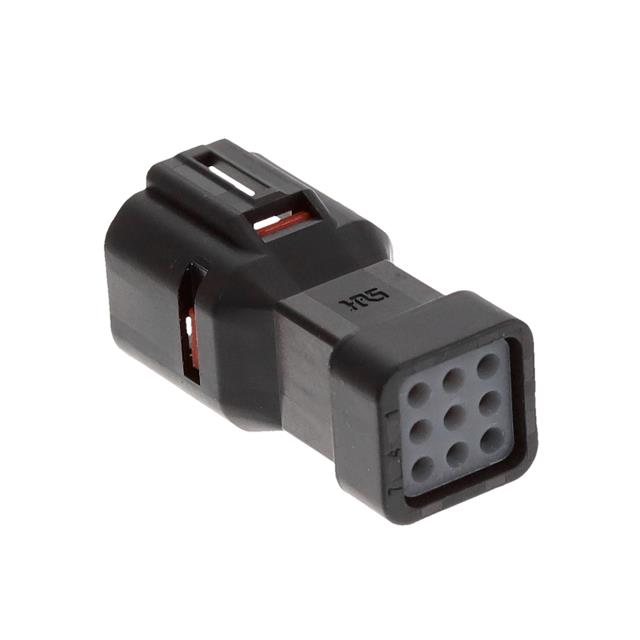

DF62WC-9EP-2.2C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 9POS 2.20MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 9POS 2.20MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF62WC-9EP-2.2C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Water Resistant
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Note	Number of Positions	Contact Termination	Fastening Type	Mounting Type	Features	Insulation Material	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Type	Color	Row Spacing	Row Spacing
Hirose Electric USA, Inc. DF62WC-2S-2.2C	Contacts Not Included	2	Crimp	Latch Lock	Free Hanging (In-Line)	Water Resistant	Polybutylene Terephthalate (PBT)	Female Socket	1	-35 °C	105 ░C	0.087 in	2.2 mm	Socket	White
Hirose Electric USA, Inc. DF62WC-3S-2.2C	Contacts Not Included		Crimp	Latch Lock	Free Hanging (In-Line)	Water Resistant	Polybutylene Terephthalate (PBT)	Female Socket	2	-35 °C	105 ░C	0.087 in	2.2 mm	Socket	White	2 mm	0.079 in
Hirose Electric USA, Inc. DF62WC-9EP-2.2C	Contacts Not Included	9	Crimp	Latch Holder	Free Hanging (In-Line)	Water Resistant	Polybutylene Terephthalate (PBT)	Male Pin	3	-35 °C	105 ░C	0.087 in	2.2 mm	Plug	Black	2 mm	0.079 in
Hirose Electric USA, Inc. DF62WC-9S-2.2C	Contacts Not Included	9	Crimp	Latch Lock	Free Hanging (In-Line)	Water Resistant	Polybutylene Terephthalate (PBT)	Female Socket	3	-35 °C	105 ░C	0.087 in	2.2 mm	Socket	White	2 mm	0.079 in
Hirose Electric USA, Inc. DF62WC-4EP-2.2C	Contacts Not Included	4	Crimp	Latch Holder	Free Hanging (In-Line)	Water Resistant	Polybutylene Terephthalate (PBT)	Male Pin	2	-35 °C	105 ░C	0.087 in	2.2 mm	Plug	Black	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)
