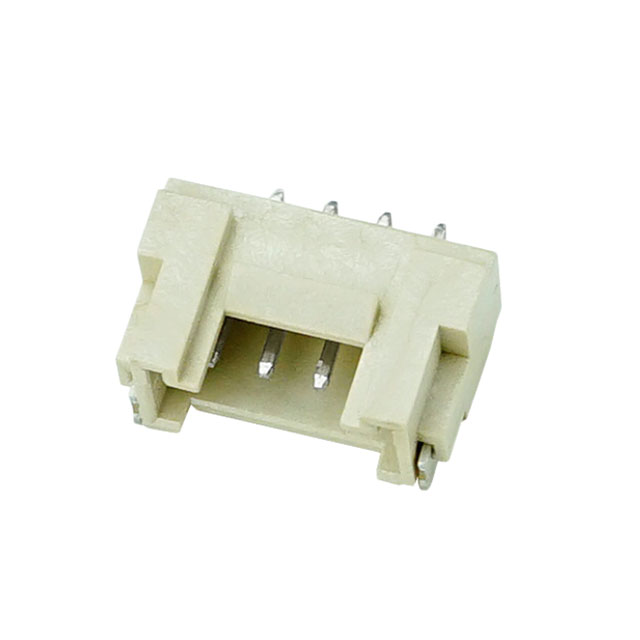

A118

Active

M5Stack Technology Co., Ltd.

GROVE FMALE HDR HY2.0-4P 1=20PCS

Search across all available documentation for this part.

Active

M5Stack Technology Co., Ltd.

GROVE FMALE HDR HY2.0-4P 1=20PCS

Technical Specifications

Parameters and characteristics for this part

Specification	A118

Connector Type	Header
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Natural
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Color	Features	Mounting Type	Number of Positions	Fastening Type	Number of Positions Loaded	Contact Shape	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Style	Shrouding	Termination
M5Stack Technology Co., Ltd. A118	Natural	Board Guide Solder Retention	Surface Mount Right Angle	4	Latch Holder	All	Square	1	0.079 in	2 mm	-25 °C	105 ░C	Header	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)

Technical documentation and resources

No documents available
