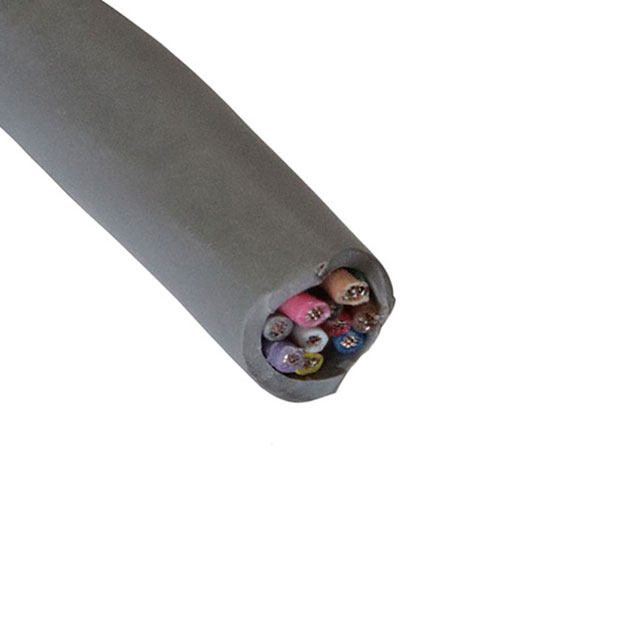

M13312 SL199

Active

ALPHA WIRE

CABLE 12COND 22AWG SLATE 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 22AWG SLATE 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M13312 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Voltage	300 V
Wire Gauge	22 AWG

Part	Wire Gauge	Cable Type	Voltage	Jacket (Insulation) Material	Length	Length	Conductor Insulation	Number of Conductors	Ratings	Conductor Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE M13312 SL199	22 AWG	Multi-Conductor	300 V	Poly-Vinyl Chloride (PVC)	914.4 m	3000 ft	Poly-Vinyl Chloride (PVC)	12	UL Style 2576	Copper Tinned	Slate	28	7	-20 C	80 C	0.272 in	6.91 mm
ALPHA WIRE M13312 SL001	22 AWG	Multi-Conductor	300 V	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	12	UL Style 2576	Copper Tinned	Slate	28	7	-20 C	80 C	0.272 in	6.91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.49
Newark	1 Foot	25	$ 1.43

General part information

12 Conductor Multi-Conductor Cable Slate 22 AWG 3000' (914.4m)
