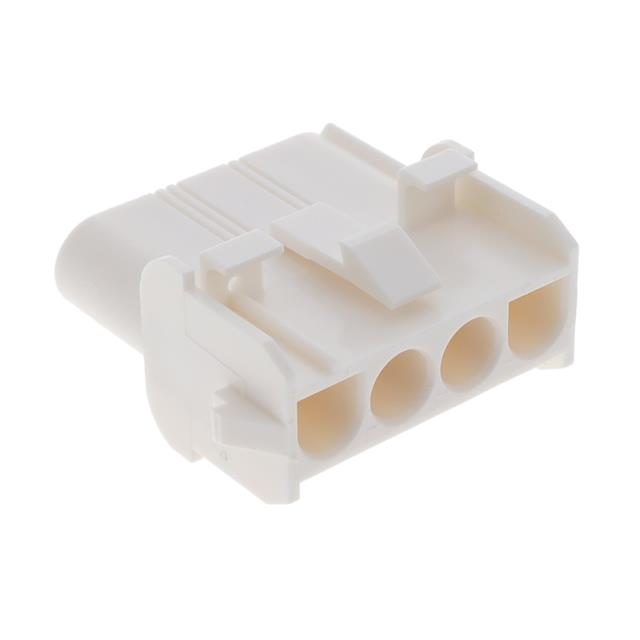

0366440004

Active

Molex

PIN & SOCKET CONNECTORS CAP HSG 4CKT FOR GLOW WIRE APPLICATION

Search across all available documentation for this part.

Active

Molex

PIN & SOCKET CONNECTORS CAP HSG 4CKT FOR GLOW WIRE APPLICATION

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Color	Connector Type	Number of Positions	Fastening Type	Features	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Mounting Type	Row Spacing	Row Spacing	Note
Molex 0366440004	Crimp	Natural	Receptacle	4	Locking Ramp	Glow Wire Compliant	Male or Female	0.25 in	6.35 mm	1	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In
Molex 0366440005	Crimp	Natural	Receptacle	6	Locking Ramp		Male or Female			2	105 ░C	-55 °C	Nylon Polyamide (PA)	Panel Mount Snap-In	6.35 mm	0.25 in	Contacts Not Included
Molex 0366440003	Crimp	Natural	Plug		Latch Lock	Glow Wire Compliant	Male Pin	0.25 in	6.35 mm	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)
Molex 0366440010	Crimp	Natural	Receptacle		Latch Lock	Glow Wire Compliant	Male or Female	0.25 in	6.35 mm	1	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Natural 0.250" (6.35mm)
