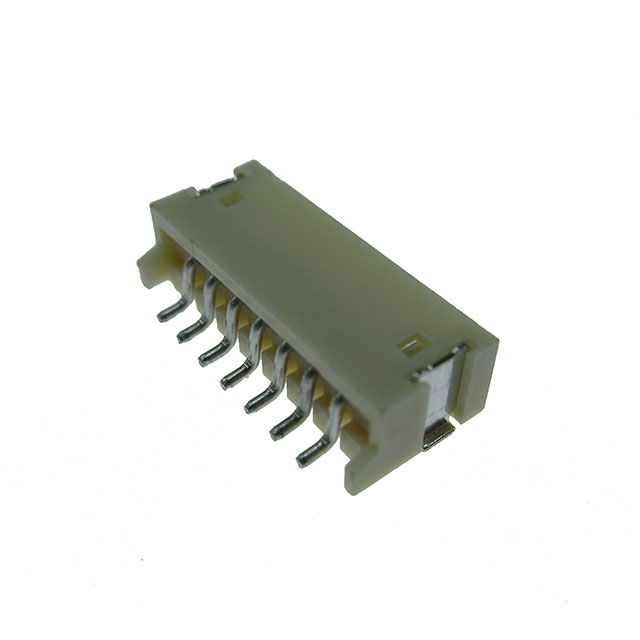

15SH-A-07-TR-SMT-T/R

Active

Adam Tech

CONN HEADER SMD R/A 7POS 1.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

15SH-A-07-TR-SMT-T/R

Active

Adam Tech

CONN HEADER SMD R/A 7POS 1.5MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15SH-A-07-TR-SMT-T/R

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Ivory
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

15SH-A Series

Part	Shrouding	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Connector Type	Contact Shape	Number of Rows	Voltage Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Fastening Type	Contact Material	Number of Positions Loaded	Contact Finish - Post	Insulation Height	Insulation Height	Mounting Type	Number of Positions	Insulation Color	Style	Current Rating (Amps)	Features
Adam Tech 15SH-A-04-TS	Shrouded - 4 Wall	Male Pin	0.106 in	2.69 mm	UL94 V-0	Header	Circular	1	50 VAC	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Friction Lock	Brass	All	Tin	4.6 mm	0.181 in	Through Hole	4	Ivory	Board to Cable/Wire
Adam Tech 15SH-A-02-TR	Shrouded - 4 Wall	Male Pin	0.106 in	2.69 mm	UL94 V-0	Header	Circular	1	100 VAC	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Friction Lock	Brass	All	Tin	3.7 mm	0.146 "	Through Hole Right Angle	2	Ivory	Board to Cable/Wire	1.5 A
Adam Tech 15SH-A-05-TS-SMT-T/R	Shrouded - 4 Wall	Male Pin			UL94 V-0	Header	Circular	1	50 VAC		-25 °C	85 °C	Solder	Friction Lock	Brass	All	Tin	5 mm	0.197 in	Surface Mount		Natural	Board to Cable/Wire	0.7 A	Solder Retention
Adam Tech 15SH-A-08-TS-SMT	Shrouded - 4 Wall	Male Pin			UL94 V-0	Header	Circular	1	50 VAC		-25 °C	85 °C	Solder	Friction Lock	Brass	All	Tin	5 mm	0.197 in	Surface Mount	8	Natural	Board to Cable/Wire	0.7 A	Solder Retention
Adam Tech 15SH-A-02-TS	Shrouded - 4 Wall	Male Pin	0.106 in	2.69 mm	UL94 V-0	Header	Circular	1	50 VAC	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Friction Lock	Brass	All	Tin	4.6 mm	0.181 in	Through Hole	2	Ivory	Board to Cable/Wire
Adam Tech 15SH-A-03-TS-SMT-T/R	Shrouded - 4 Wall	Male Pin			UL94 V-0	Header	Circular	1	50 VAC	Thermoplastic	-25 °C	85 °C	Solder	Friction Lock	Brass	All	Tin	5 mm	0.197 in	Surface Mount		Natural	Board to Board Cable	0.7 A	Solder Retention
Adam Tech 15SH-A-07-TR-SMT-T/R	Shrouded - 4 Wall	Male Pin			UL94 V-0	Header	Circular	1	50 VAC	Nylon 9T Polyamide (PA9T)	-25 °C	85 °C	Solder	Friction Lock	Brass	All	Tin	3.7 mm	0.146 "	Surface Mount Right Angle	7	Ivory	Board to Cable/Wire		Solder Retention
Adam Tech 15SH-A-04-TS-SMT-T/R	Shrouded - 4 Wall	Male Pin			UL94 V-0	Header	Circular	1	50 VAC		-25 °C	85 °C	Solder	Friction Lock	Brass	All	Tin	5 mm	0.197 in	Surface Mount	4	Natural	Board to Cable/Wire	0.7 A	Solder Retention
Adam Tech 15SH-A-06-TR-SMT	Shrouded - 4 Wall	Male Pin			UL94 V-0	Header	Circular	1	50 VAC	Nylon 9T Polyamide (PA9T)	-25 °C	85 °C	Solder	Friction Lock	Brass	All	Tin	3.7 mm	0.146 "	Surface Mount Right Angle	6	Ivory	Board to Cable/Wire		Solder Retention
Adam Tech 15SH-A-10-TS-SMT	Shrouded - 4 Wall	Male Pin			UL94 V-0	Header	Circular	1	50 VAC		-25 °C	85 °C	Solder	Friction Lock	Brass	All	Tin	5 mm	0.197 in	Surface Mount	10	Natural	Board to Cable/Wire	0.7 A	Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.17
		10	$ 0.90
		100	$ 0.69
		500	$ 0.58
	Digi-Reel®	1	$ 1.17
		10	$ 0.90
		100	$ 0.69
		500	$ 0.58
	Tape & Reel (TR)	1000	$ 0.41
