1411093

Active

Phoenix Contact

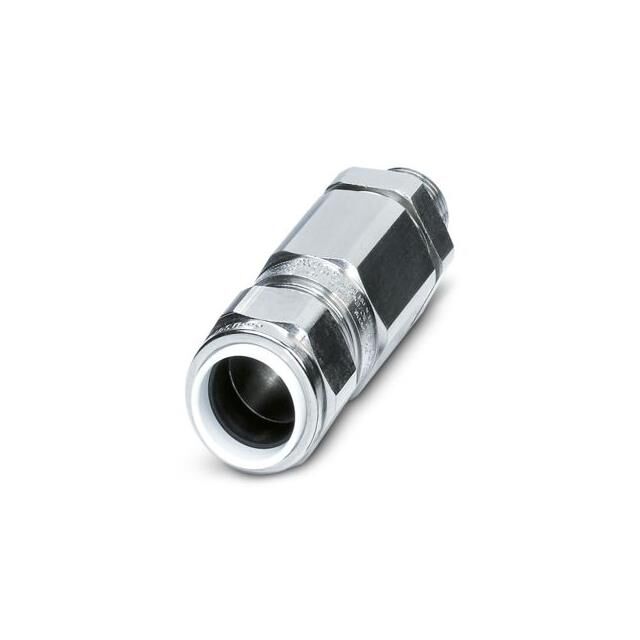

CABLE GLAND 18.2-26.2MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 18.2-26.2MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	1411093

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68, IP66, IP67
Material	Stainless Steel
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max]	1.031 in, 26.2 mm
Outside Cable Diameter (Min) [Min] [diameter]	18.2 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.717 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M25
Type	Cable Gland

Part	Material	Includes	Type	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1411093	Stainless Steel	O-Ring Seal	Cable Gland	0.591 in	15 mm	18.2 mm	0.717 in	M25	IP66 IP67 IP68	130 °C	-60 °C	Silver	1.031 in 26.2 mm
Phoenix Contact 1411089	Stainless Steel	O-Ring Seal	Cable Gland	0.591 in	15 mm	9.5 mm	0.374 in	M20	IP66 IP67 IP68	130 °C	-60 °C	Silver		15.9 mm	0.626 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 147.71

General part information

Cable Gland Stainless Steel M25 Silver

Technical documentation and resources
