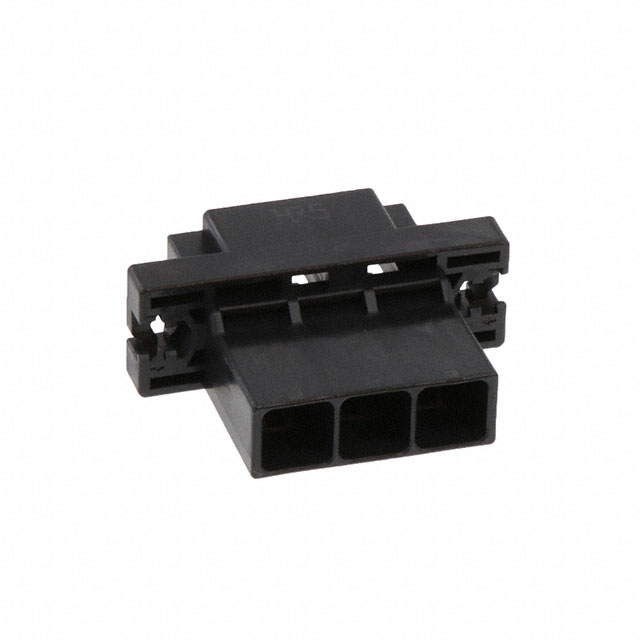

DF60F-3EP-10.16C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 3POS 10.16MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 3POS 10.16MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF60F-3EP-10.16C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Blade Pin
Fastening Type	Latch Holder
Features	Mating Flange
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	10.16 mm
Pitch [x]	0.4 in

Part	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Color	Insulation Material	Contact Termination	Note	Contact Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Termination	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Insulation Color	Contact Material	Contact Shape	Voltage Rating	Number of Positions Loaded	Current Rating (Amps)	Shrouding	Contact Finish - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating
Hirose Electric USA, Inc. DF60F-3EP-10.16C	Plug	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Contacts Not Included	Blade Pin	Mating Flange	105 ░C	-55 °C	Free Hanging (In-Line)	Latch Holder
Hirose Electric USA, Inc. DF60F-3S-10.16C	Receptacle	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Contacts Not Included	Female Socket		105 ░C	-55 °C	Free Hanging (In-Line)	Latch Lock
Hirose Electric USA, Inc. DF60F-3P-10.16DSA(50)	Header			1		Polybutylene Terephthalate (PBT) Glass Filled			Male Blade	Board Guide Glow Wire Compliant	105 ░C	-55 °C	Through Hole	Latch Holder	Solder	Gold	0.203 Ám	8 Áin	Board to Cable/Wire	0.15 in	3.81 mm	UL94 V-0	Black	Copper Alloy	Rectangular	1000 VAC	All	Varies by Wire Gauge	Shrouded - 4 Wall	Gold	0.846 "	21.5 mm	10.16 mm	0.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug Black 0.400" (10.16mm)
