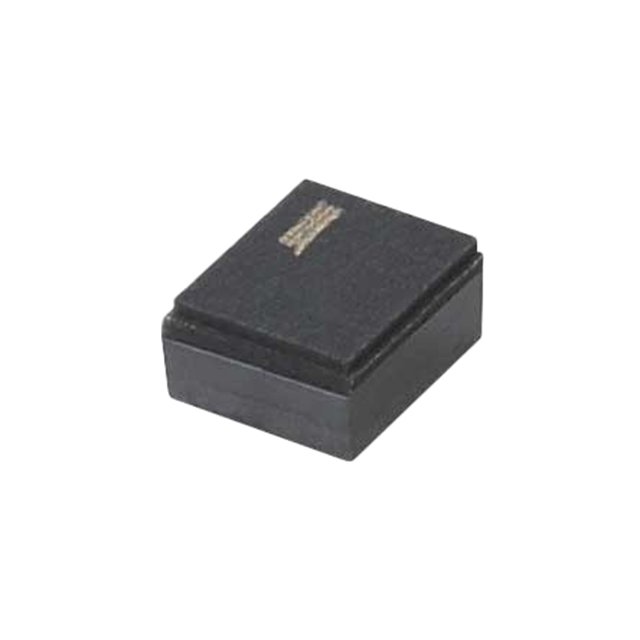

LXDC2MB15G-456
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 1.5V
Deep-Dive with AI
Search across all available documentation for this part.
LXDC2MB15G-456
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 1.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LXDC2MB15G-456 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 50 mA |
| Efficiency | 84 % |
| Features | Remote On/Off, UVLO |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD Module |
| Size / Dimension [x] | 0.08 " |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 0.06 in |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [z] | 1 mm |
| Size / Dimension [z] | 0.04 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2 V |
| Voltage - Output 1 | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LXDC2MB Series
Non-Isolated PoL Module DC DC Converter 1 Output 1.5V 50mA 2V - 5.5V Input
Documents
Technical documentation and resources
No documents available
