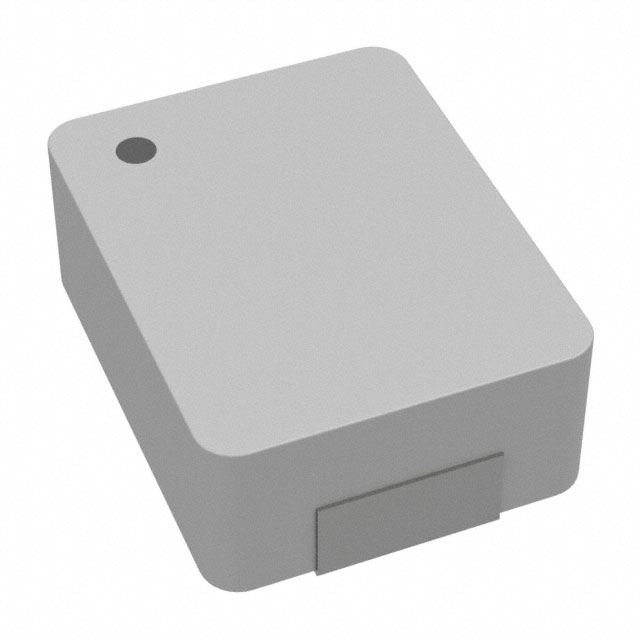

HMLE32251B-1R0MS
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 3.9A 41 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
HMLE32251B-1R0MS
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 3.9A 41 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HMLE32251B-1R0MS |
|---|---|
| Current - Saturation (Isat) | 4.3 A |
| Current Rating (Amps) | 3.9 A |
| DC Resistance (DCR) [Max] | 41 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Shielding | Shielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 1210 |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2000 | $ 0.23 | ||
| 4000 | $ 0.23 | |||
| 6000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
| 50000 | $ 0.19 | |||
Description
General part information
HMLE32251 Series
1 µH Shielded Inductor 3.9 A 41mOhm Max 1210 (3225 Metric)
Documents
Technical documentation and resources
No documents available
