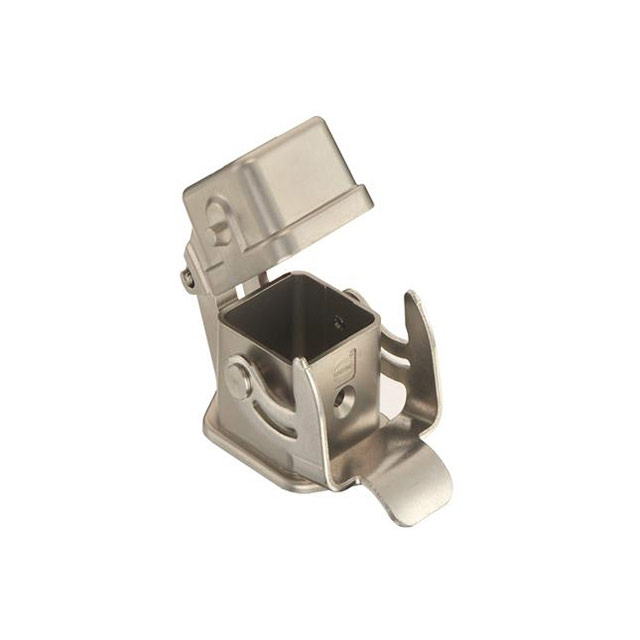

19440030306 - 1944003030x

19440030306

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, STAINLESS STEEL BODY, 1 LEVER, 3A

Deep-Dive with AI

Search across all available documentation for this part.

Documents19440030306 DatasheetDatasheet+1
19440030306 - 1944003030x

19440030306

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, STAINLESS STEEL BODY, 1 LEVER, 3A

Deep-Dive with AI

Documents19440030306 DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification19440030306
Connector TypeBase - Panel Mount
FeaturesCover
Housing MaterialStainless Steel
Ingress ProtectionIP67 - Dust Tight, Waterproof
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size3 A
Size / Dimension [x]1.323 in
Size / Dimension [x]33.6 mm
Size / Dimension [y]1.575 in
Size / Dimension [y]40 mm
Size / Dimension [z]0.909 in
Size / Dimension [z]23.1 mm
StyleBottom Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 109.13
10$ 100.14
25$ 96.29
50$ 93.08
100$ 87.95
NewarkEach 1$ 126.83
5$ 120.47
10$ 114.11
25$ 104.46

Description

General part information

19440030 Series

Base - Panel Mount Connector Bottom Entry 3A IP67 - Dust Tight, Waterproof
