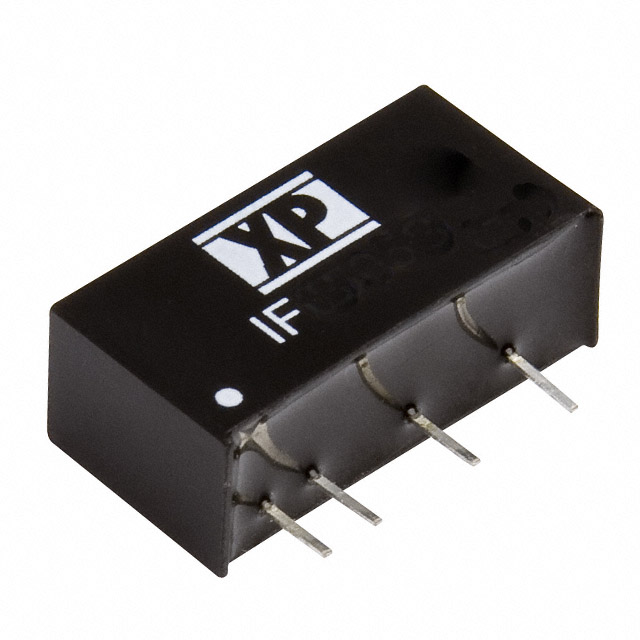

IF1215S
ActiveXP POWER
DC DC CONVERTER 15V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IF1215S
ActiveXP POWER
DC DC CONVERTER 15V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IF1215S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 67 mA |
| Efficiency | 66 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 6 Leads |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 7.2 mm |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [z] | 12.6 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20 | $ 11.28 | |
Description
General part information
IF1215 Series
Isolated Module DC DC Converter 1 Output 15V 67mA 10.8V - 13.2V Input
