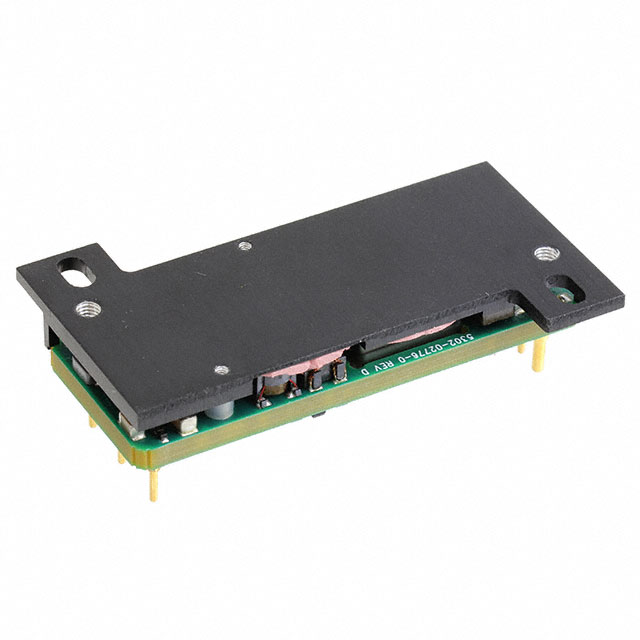

PAE-29/3-D48PB3-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 29.8V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAE-29/3-D48PB3-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 29.8V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PAE-29/3-D48PB3-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 3.3 A |
| Efficiency | 92.5 % |
| Features | OVP, Remote On/Off, SCP, OTP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-DIP Module, 1/8 Brick |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 2.32 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.92 " |
| Size / Dimension [z] | 12.4 mm |
| Size / Dimension [z] | 0.49 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 29.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PAE-29 Series
Isolated Module DC DC Converter 1 Output 29.8V 3.3A 36V - 75V Input
