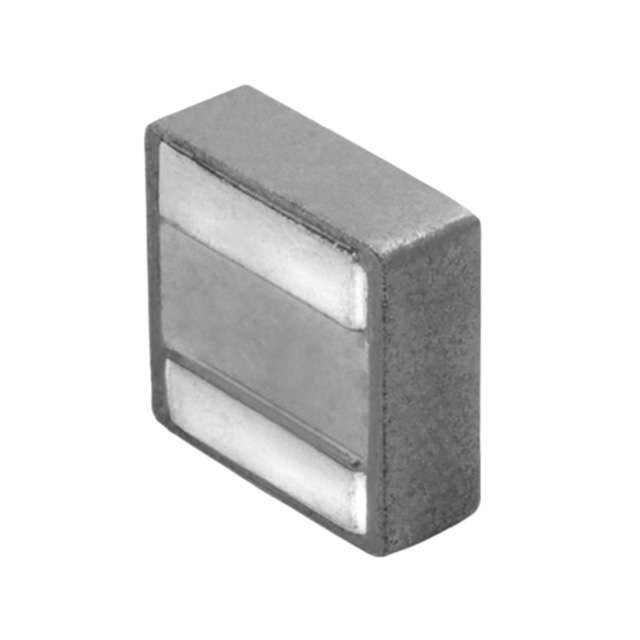

PM2201.152NLT
ActivePulse Electronics
POWER INDUCTORS - SMD IND, MOLDED POWDER, 4.3X4.3X2.1 SMT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSolder Reflow Profile
PM2201.152NLT
ActivePulse Electronics
POWER INDUCTORS - SMD IND, MOLDED POWDER, 4.3X4.3X2.1 SMT
Deep-Dive with AI
DocumentsSolder Reflow Profile
Technical Specifications
Parameters and characteristics for this part
| Specification | PM2201.152NLT |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating (Amps) | 7.6 A |
| DC Resistance (DCR) [Max] | 23.5 mOhm |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.161 in |
| Size / Dimension [x] | 4.1 mm |
| Size / Dimension [y] | 4.1 mm |
| Size / Dimension [y] | 0.161 in |
| Supplier Device Package | SMD |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.11 | |
Description
General part information
PM2201 Series
Power Inductors - SMD IND, MOLDED POWDER, 4.3X4.3X2.1 SMT
