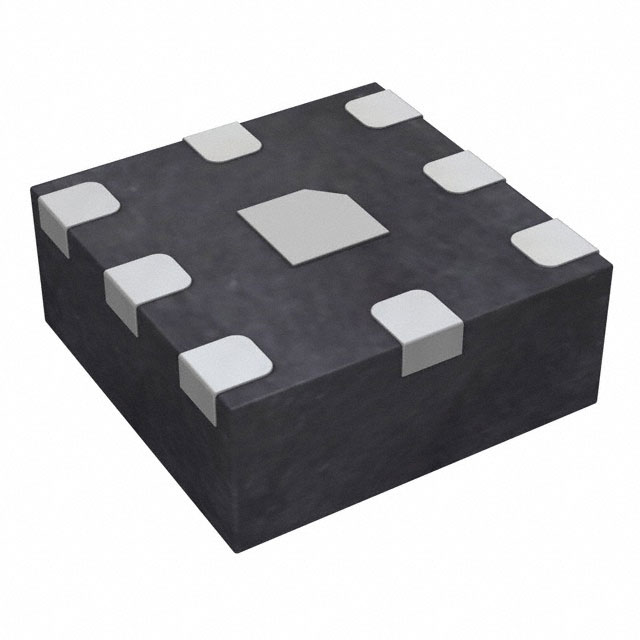

SKY13522-644LF
ActiveSkyworks Solutions Inc.
RF SWITCH SPDT 700MHZ TO 3GHZ 43DB 8-PIN QFN EP T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY13522-644LF
ActiveSkyworks Solutions Inc.
RF SWITCH SPDT 700MHZ TO 3GHZ 43DB 8-PIN QFN EP T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13522-644LF |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 700 MHz |
| IIP3 | 57 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.7 dB |
| Isolation | 46 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 8-XFQFN Exposed Pad |
| RF Type | CDMA, WCDMA, GSM |
| Supplier Device Package | 8-QFN (1.1x1.1) |
| Test Frequency [Max] | 3.8 GHz |
| Test Frequency [Min] | 2.3 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.98 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.83 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.45 | |||
| Digi-ReelÛ | 1 | $ 0.98 | ||
| 10 | $ 0.88 | |||
| 25 | $ 0.83 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.45 | |||
| Tape & Reel (TR) | 3000 | $ 0.42 | ||
| 6000 | $ 0.40 | |||
| 15000 | $ 0.38 | |||
Description
General part information
SKY13522 Series
RF Switch IC CDMA, GSM, WCDMA SPDT 3 GHz 50Ohm 8-QFN (1.1x1.1)
Documents
Technical documentation and resources
