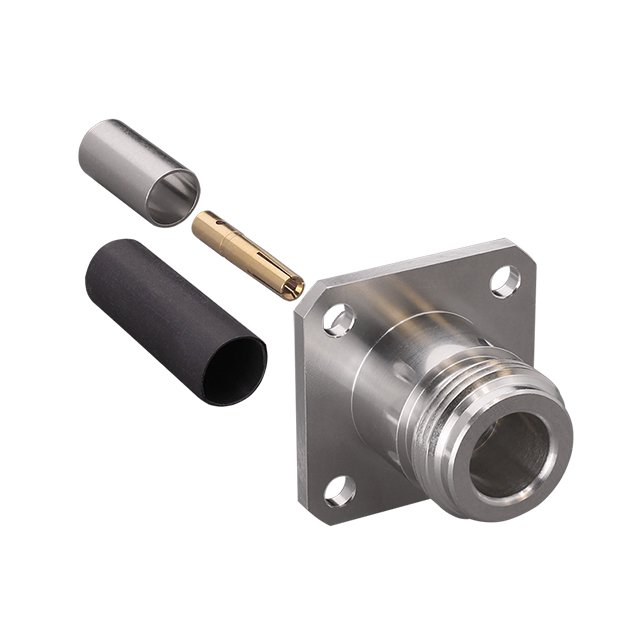

CONN008-W

Active

TE Connectivity Linx

CONN N PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN N PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	CONN008-W

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Low PIM
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-60 °C
Shield Termination	Crimp
Voltage Rating	2.5 kV

Part	Center Contact Material	Voltage Rating	Connector Type	Body Finish	Dielectric Material	Connector Style	Mating Cycles	Frequency - Max [Max]	Body Material	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Number of Ports	Contact Termination	Features	Mounting Feature	Center Contact Plating	Impedance	Cable Group	Cable Group
TE Connectivity Linx CONN008-W	Phosphor Bronze	2.5 kV	Female Socket Jack	White Bronze	Polytetrafluoroethylene (PTFE)	N Type	500	11 GHz	Brass	Crimp	-60 °C	165 °C	Silver	1	Solder	Low PIM	Flange	Gold	50 Ohms	RG-55	142 223 400

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.96

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
