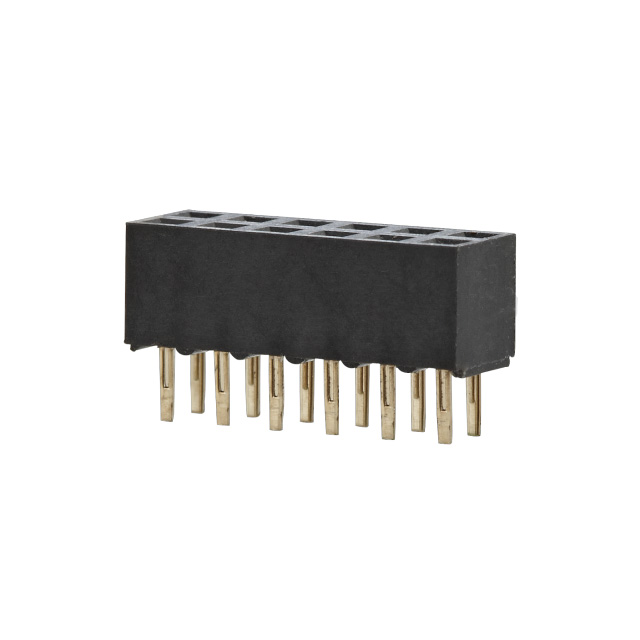

FR20C05VBDN

Active

METZ CONNECT USA Inc.

RECEPTACLE, THR, DUAL ROW, 2.00

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, THR, DUAL ROW, 2.00

Technical Specifications

Parameters and characteristics for this part

Specification	FR20C05VBDN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions Loaded	Contact Material	Contact Type	Insulation Material	Number of Rows	Contact Length - Post	Contact Length - Post	Mounting Type	Fastening Type
METZ CONNECT USA Inc. FR20C05VBDN	-40 °C	105 ░C	Solder	10	0.079 in	2 mm	Square	Receptacle	0.079 in	2 mm	Flash	Black	4.3 mm	0.169 "	Gold	All	Copper Alloy	Female Socket	Polyester Polyethylene Terephthalate (PET)	2	0.091 in	2.3 mm	Through Hole	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
