AS1345A-BWLT-12
Obsoleteams-OSRAM USA INC.
IC REG BOOST 12V 1A 8WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS1345A-BWLT-12
Obsoleteams-OSRAM USA INC.
IC REG BOOST 12V 1A 8WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS1345A-BWLT-12 |
|---|---|
| Current - Output | 1 A |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |

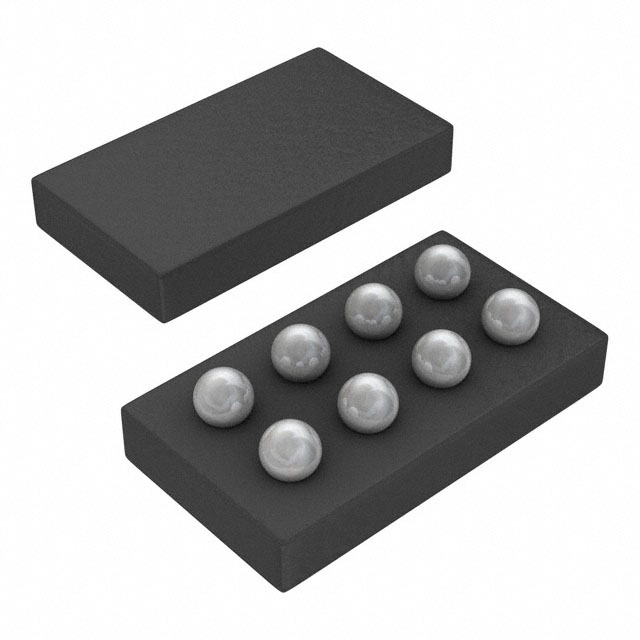

| Package / Case | WLCSP, 8-UFBGA |
| Supplier Device Package | 8-WLCSP |
| Supplier Device Package [x] | 1.62 |
| Supplier Device Package [y] | 0.84 |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5 V |
| Voltage - Input (Min) [Min] | 2.9 V |
| Voltage - Output (Min/Fixed) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AS1345 Series
Boost Switching Regulator IC Positive Fixed 12V 1 Output 1A (Switch) 8-UFBGA, WLCSP
