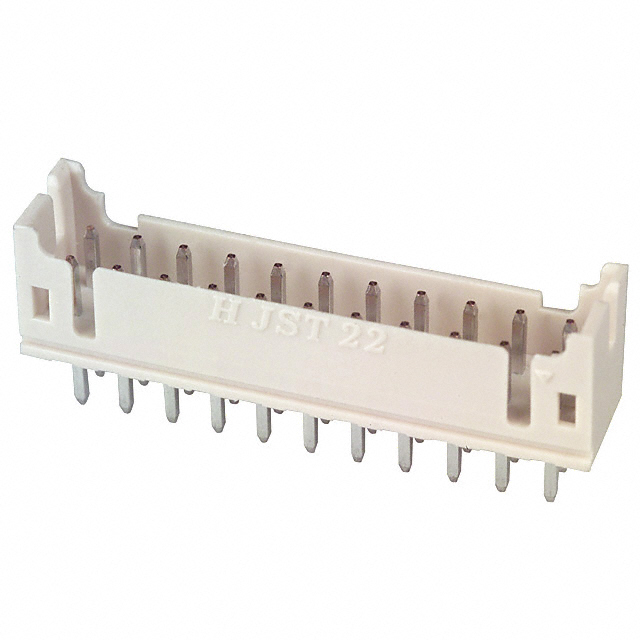

B22B-PHDSS

Active

JST Sales America Inc.

CONN HEADER VERT 22POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 22POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B22B-PHDSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.114 in
Contact Length - Mating	2.9 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	8.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.291 in
Overall Contact Length	7.4 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Length - Post	Contact Length - Post	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Insulation Height	Insulation Height	Number of Positions	Contact Material	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Shrouding	Number of Rows	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Mated Stacking Heights	Contact Shape	Termination	Contact Finish - Post	Mounting Type
JST Sales America Inc. B22B-PHDSS	0.118 in	3 mm	250 VDC	0.114 in	2.9 mm	All	Glass Filled Nylon Polyamide (PA)	0.079 in	2 mm	Male Pin	6.5 mm	0.256 in	22 positions	Copper Alloy	Header	0.079 in	2 mm	Natural	Shrouded - 4 Wall	2	0.291 in	7.4 mm	3 A	UL94 V-0	Detent Lock	-25 °C	85 °C	Board to Cable/Wire	8.8 mm	Square	Solder	Tin	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 22 position 0.079" (2.00mm)
