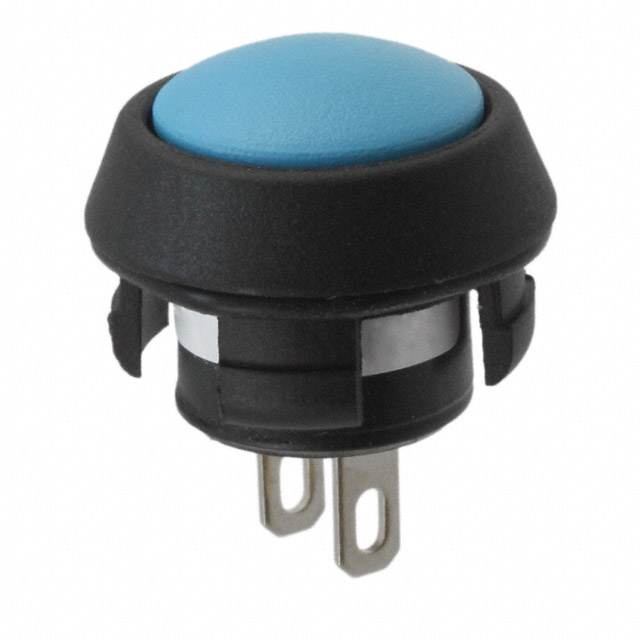

30-105

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	30-105

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Blue
Current Rating (Amps)	150 mA
Electrical Life	500000 Cycles
Features	Sealed - Fully
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	15.2 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	24 V

Part	Voltage Rating - DC	Features	Current Rating (Amps)	Actuator Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Switch Function	Actuator Marking	Mechanical Life	Circuit	Mounting Type	Termination Style
Grayhill Inc. 30-105	24 V	Sealed - Fully	150 mA	Button Round	Standard	-40 °C	80 C	500000 Cycles	15.2 mm	Blue	Off-Mom	No Marking	500000 Cycles	SPST-NO	Panel Mount Snap-In	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
