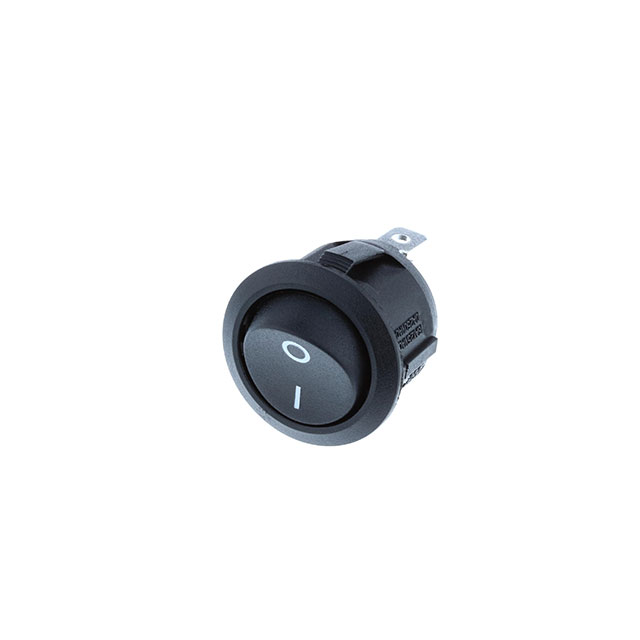

RA1-2A-DC-2-B-1
ActiveSwitch Components
SWITCH ROCKER DPST 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RA1-2A-DC-2-B-1 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Round |
| Approval Agency | cURus, ENEC |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A, 10 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.52 | |
| 10 | $ 4.31 | |||
| 25 | $ 4.22 | |||
| 50 | $ 4.12 | |||
| 100 | $ 3.94 | |||
| 250 | $ 3.63 | |||
| 500 | $ 2.78 | |||
| 1000 | $ 2.60 | |||
Description
General part information
RA1-2A Series
Rocker Switch DPST 16 (AC), 10 (DC) 125 V Panel Mount, Snap-In
