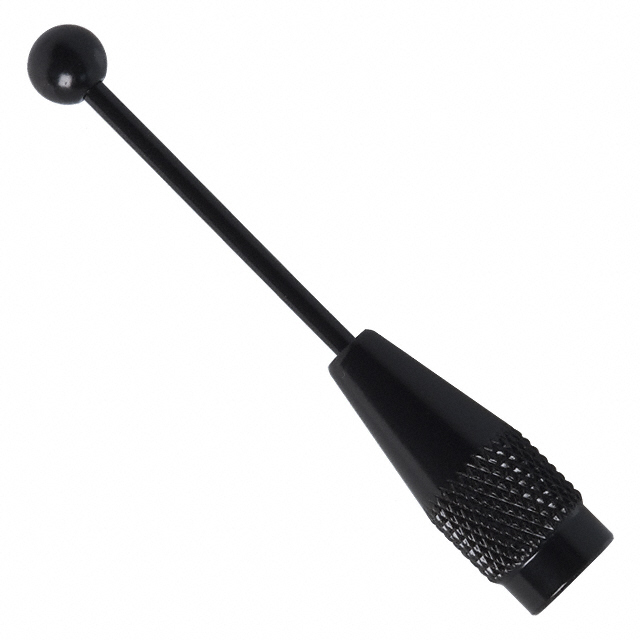

ANT-ELE-S01-010

Active

TE Connectivity Linx

RF ANT 892MHZ/1.85GHZ WHIP STR

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT 892MHZ/1.85GHZ WHIP STR

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Frequency Range [Min]	Frequency Range [Max]	Termination	VSWR	Number of Bands	Gain	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Frequency Group [Max]	Frequency Group [Min]	Height (Max)	Height (Max) [Max] [z]
TE Connectivity Linx ANT-ELE-S01-010	Whip Straight	60.5 mm	2.382 in	Magnetic	1.71 GHz 824 MHz	1.99 GHz 960 MHz	M5	1.5	2	-3.9 dBi -1.5 dBi	1.7 GHz 1.8 GHz 1.9 GHz 800 MHz 850 MHz 900 MHz
TE Connectivity Linx ANT-ELE-S01-005	Whip Straight			Magnetic	824 MHz	960 MHz	M5	1.5	1	3.8 dBi	800 MHz 850 MHz 900 MHz	295.4 mm	11.63 in	1 GHz	300 MHz
TE Connectivity Linx ANT-ELE-S01-011	Dome			Magnetic	2.4 GHz	2.5 GHz	M5	2	1			25.91 mm	1.02 in
TE Connectivity Linx ANT-ELE-S01-006	Whip Straight			Magnetic	1.71 GHz 824 MHz	1.88 GHz 960 MHz	M5	1.5	2	0.5 dBi 3.7 dBi	1.7 GHz 1.8 GHz 800 MHz 850 MHz 900 MHz					233.17 mm	9.18 in
TE Connectivity Linx ANT-ELE-S01-008	Whip Straight			Magnetic	1.71 GHz 824 MHz	1.99 GHz 960 MHz	M5	2	2		1.7 GHz 1.8 GHz 1.9 GHz 800 MHz 850 MHz 900 MHz	323.85 mm	12.75 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.32

General part information

RF ANTENNA Whip, Straight M5 Magnetic
