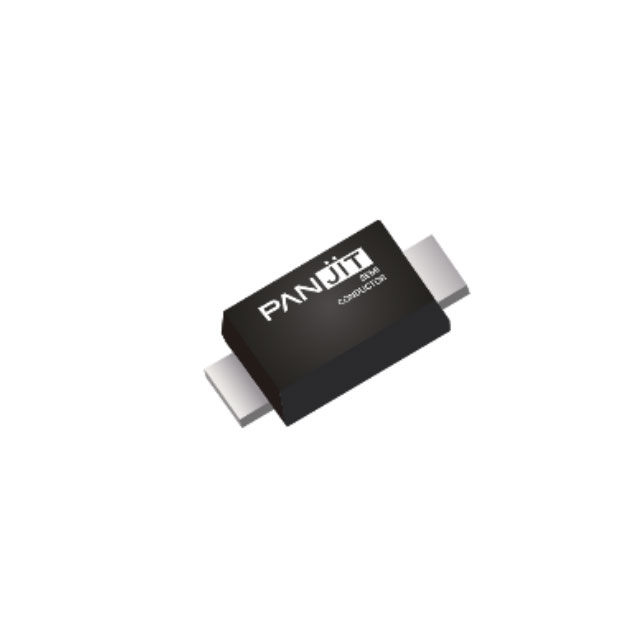

SS3040HE-AU_R1_000A1
ActivePanjit International Inc.
SOD-123HE, SKY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS3040HE-AU_R1_000A1
ActivePanjit International Inc.
SOD-123HE, SKY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS3040HE-AU_R1_000A1 |
|---|---|
| Capacitance @ Vr, F | 160 pF |
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 150 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SOD-123H |
| Qualification | AEC-Q101 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-123HE |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 520 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.54 | ||
| 10 | $ 0.33 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.11 | |||
| 9000 | $ 0.10 | |||
| 15000 | $ 0.10 | |||
| 21000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
SS3040 Series
Diode 40 V 3A Surface Mount SOD-123HE
