X1005324-LWS5SX10A2
ActiveKyocera AVX
ANTENNA GNSS / LTE MIMO / WIFI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X1005324-LWS5SX10A2
ActiveKyocera AVX
ANTENNA GNSS / LTE MIMO / WIFI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X1005324-LWS5SX10A2 |
|---|---|
| Antenna Type | Dome |
| Applications | Wi-Fi, GPS, GLONASS, LTE, GNSS |
| Features | LNA, Cable - 1m |
| Frequency (Center/Band) | 1.602 GHz, 829 MHz, 1.561 GHz, 1.575 GHz, 2.45 GHz, 1.94 GHz, 5.4875 GHz, 2.495 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.69 GHz, 5.825 GHz, 960 MHz, 2.17 GHz, 2.5 GHz |
| Frequency Range [Min] | 2.3 GHz, 5.15 GHz, 2.4 GHz, 698 MHz, 1.71 GHz |
| Gain | 6.6 dBi, 4.9 dBi, 3.8 dBi, 4.1 dBi, 3.5 dBi, 3 dBi, 4.6 dBi |
| Height (Max) [Max] | 2.5 in |
| Height (Max) [Max] | 63.5 mm |
| Ingress Protection | IPX7 |
| Mounting Type | Adhesive |
| Number of Bands | 8 |
| RF Family/Standard | Navigation, WiFi, Cellular |
| Termination | RP-SMA Male (1), SMA Male (2) |
| VSWR | 2, 1.8, 3.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 32 | $ 160.28 | |
Description
General part information
X1005324 Series

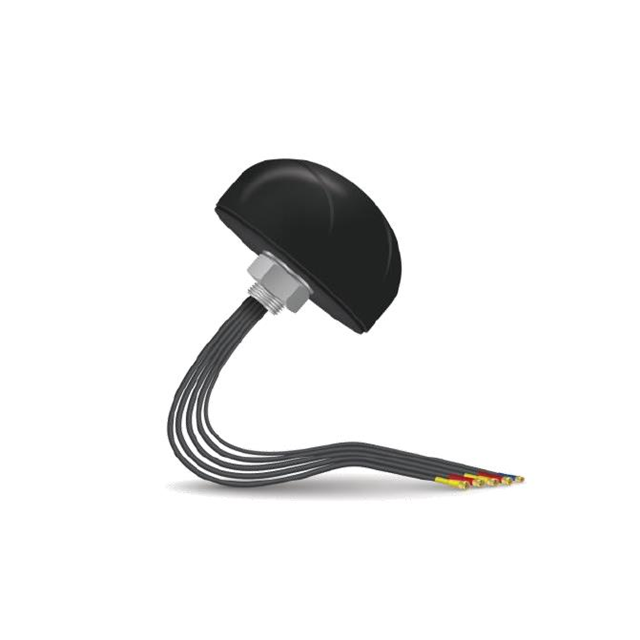

RF ANTENNA GLONASS, GPS, GNSS, LTE, Wi-Fi Dome SMA Male (2), RP-SMA Male (1) Adhesive
