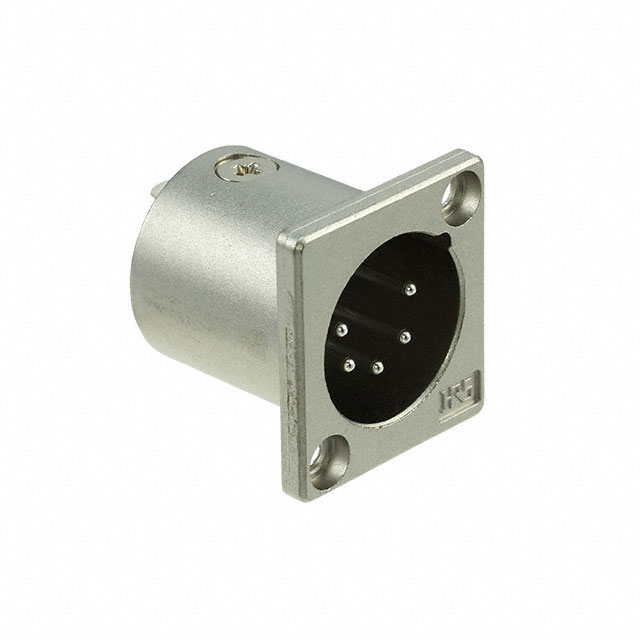

HA16RA-5P(76)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 5P SILV SLDR CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 5P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HA16RA-5P(76)

Applications	Industrial
Cable Opening [custom]	0.748 in
Cable Opening [custom]	19 mm
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Ground
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	16
Shielding	Shielded
Voltage Rating	130 VAC, 180 VDC

Part	Insert Material	Applications	Fastening Type	Shielding	Mounting Feature	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shell Material	Orientation	Color	Voltage Rating	Current Rating (Amps)	Shell Finish	Features	Shell Size - Insert	Contact Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
Hirose Electric USA, Inc. HA16RA-3P(76)	Nylon Polyamide (PA)	Industrial	Push-Pull	Shielded	Flange	Silver	0.748 in	19 mm	Male Pins Receptacle	78.7 µin	2 µm	UL94 V-0	Aluminum Alloy	Keyed	Silver	130 VAC 180 VDC	15 A	Nickel	Ground	16	Brass	Metal	70 °C	-25 °C
Hirose Electric USA, Inc. HA16RA-4P(77)	Nylon Polyamide (PA)	Industrial	Push-Pull	Shielded	Flange	Silver	0.748 in	19 mm	Male Pins Receptacle	78.7 µin	2 µm	UL94 V-0	Aluminum Alloy	Keyed	Silver	130 VAC 180 VDC	5 A	Nickel	Ground	16	Brass	Metal	70 °C	-25 °C	4
Hirose Electric USA, Inc. HA16RA-5P(76)	Nylon Polyamide (PA)	Industrial	Push-Pull	Shielded	Flange	Silver	0.748 in	19 mm	Male Pins Receptacle	78.7 µin	2 µm	UL94 V-0	Aluminum Alloy	Keyed	Silver	130 VAC 180 VDC	4 A	Nickel	Ground	16	Brass	Metal	70 °C	-25 °C
Hirose Electric USA, Inc. HA16RA-4P(76)	Nylon Polyamide (PA)	Industrial	Push-Pull	Shielded	Flange	Silver	0.748 in	19 mm	Male Pins Receptacle	78.7 µin	2 µm	UL94 V-0	Aluminum Alloy	Keyed	Silver	130 VAC 180 VDC	5 A	Nickel	Ground	16	Brass	Metal	70 °C	-25 °C	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
