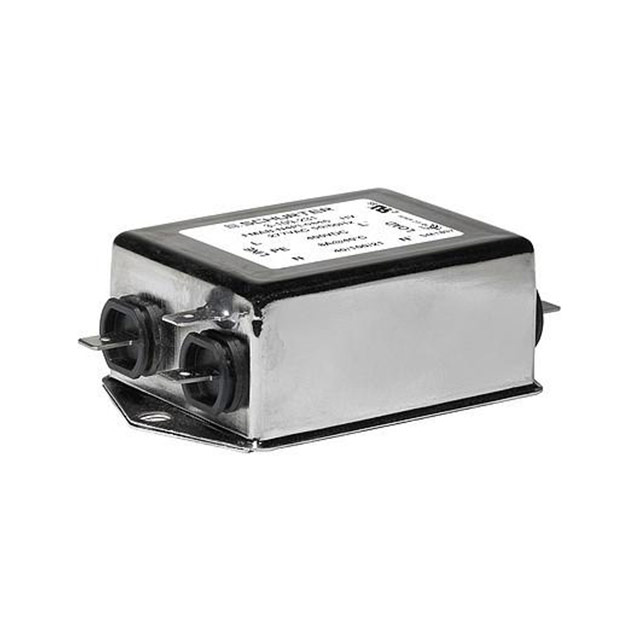

FMAB-N6PI-0846
ActiveSCHURTER Inc.
LINE FILTER 277V/400VDC 277VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FMAB-N6PI-0846
ActiveSCHURTER Inc.
LINE FILTER 277V/400VDC 277VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAB-N6PI-0846 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, VDE, ENEC |
| Configuration | Single Stage |
| Current | 8 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 277 V |
| Voltage - Rated DC [Max] | 400 V |
| Voltage - Rated DC [Min] | 277 V |
FMAB Series
| Part | Approval Agency | Configuration | Current | Termination Style | Frequency - Operating [Max] | Frequency - Operating [Min] | Filter Type | Mounting Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated AC | Voltage - Rated DC [Min] | Voltage - Rated DC [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 1 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | General Purpose | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 20 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | Medical | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 6 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | Medical | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 12 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | Medical | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 20 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | Medical | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 4 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | Medical | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 4 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | General Purpose | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 8 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | Medical | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 3 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | Medical | 100 °C | -40 °C | 277 V | 277 V | 400 V |
SCHURTER Inc. | cURus ENEC VDE | Single Stage | 6 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | Chassis Mount | General Purpose | 100 °C | -40 °C | 277 V | 277 V | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 20 | $ 15.78 | |
Description
General part information
FMAB Series
Single Phase EMC/EMI Line Filter 8 A 277V 277V, 400V 50/60Hz Single Stage Quick Connect
