PX0793/63

Active

BULGIN LIMITED

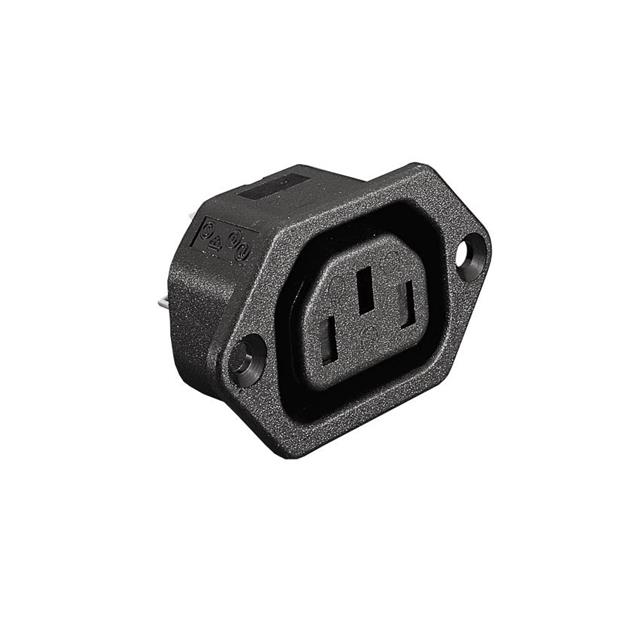

HIGH POWER CONNECTOR, 3 POLE OUTLET, PX SERIES, RECEPTACLE, 250 VAC, 10 A, FLANGE MOUNT

Search across all available documentation for this part.

Active

BULGIN LIMITED

HIGH POWER CONNECTOR, 3 POLE OUTLET, PX SERIES, RECEPTACLE, 250 VAC, 10 A, FLANGE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	PX0793/63

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Features	Shuttered
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	32.26 mm
Panel Cutout Dimensions [y]	24.77 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Current Rating - Appliance Inlet	Approval Agency	Features	Mounting Type	Connector Type	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Material Flammability Rating	Accomodates a Fuse
BULGIN LIMITED PX0793/63	Unfiltered - Commercial	10 A	CSA ENEC UL VDE	Shuttered	Flange Panel Mount	Receptacle Female Sockets	IEC 320-2-2/F	24.77 mm	32.26 mm	0.25 in	6.3 mm	Quick Connect	250 VAC	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Flange
